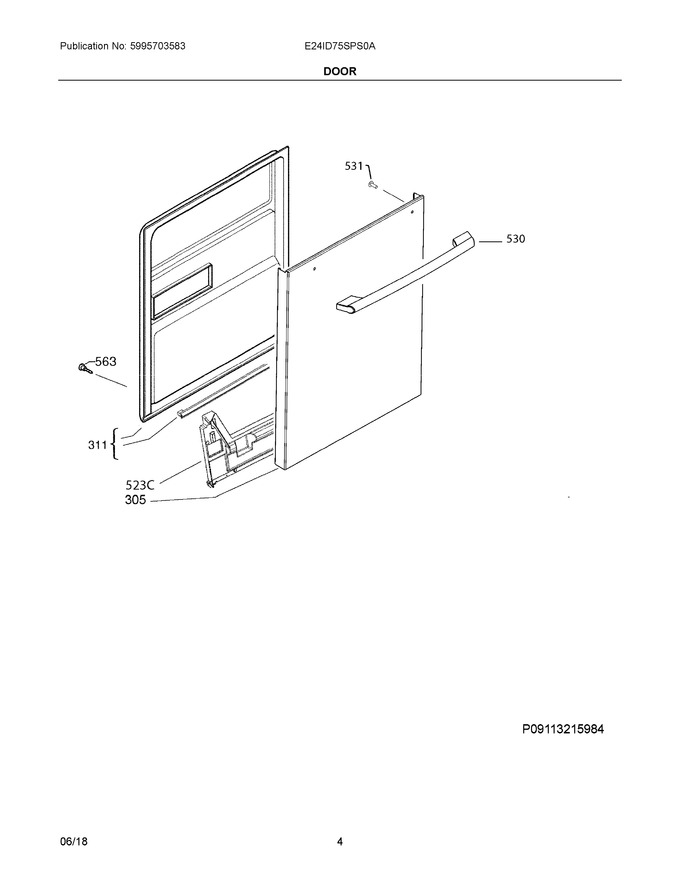

01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Electrical Parts
05 - Wash System
06 - Tub & Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 305 | 117495190 | Outer Door, Stainless |
|
$ 550.70 | |||||
| 311 | A00010702 | Liner, Door |
|
$ 397.30 | |||||
| 530 | 154743103 | Handle Assembly, Door, Stainless |
|
$ 269.33 | |||||
| 531 | 154633601 | Screw, Handle Mtg., (2) |
|
$ 14.89 | |||||
| 563 | 405538278 | Screws, Door, Cpl., 3.5x13/3.5x40/3.5x19 |
|
$ 16.34 | |||||
| 523C | 807194801 | Support, Kickplate |
|
$ 129.41 | |||||
| NI | 405530675 | Plate, Door Handle, (2) |
|
- | |||||
| NI | 405537692 | Screw, Door Handle, 2 Pcs., M4x10mm Ph |
|
$ 7.23 | |||||
| NI | 405536396 | Screw, Plinth, Top, M5x8, 5 Ph, 2 Pcs. |
|
$ 14.18 |
