01 - Cover Sheet

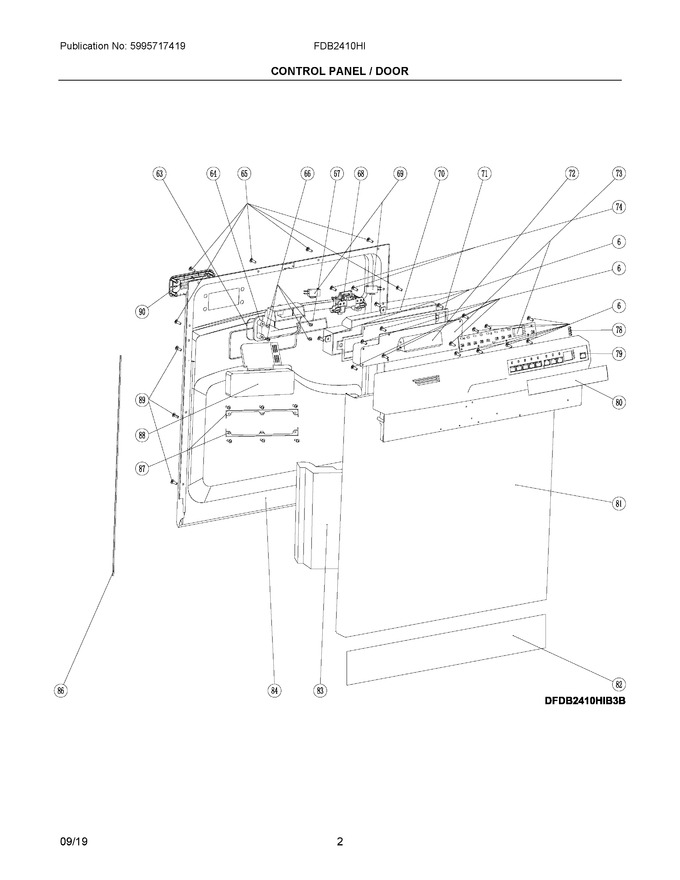

02 - Control Panel / Door


03 - Tub / Water Delivery


04 - Motor And Pump


05 - Racks / Hinges


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5304483493		Screw, St3.5 X 9, (4)		Appelez-nous	-
63	5304482423		Gasket, Vent, To Door Liner				$ 20.63
64	5304482424		Vent Assembly, Door				$ 32.03
65	5304482425		Screw, Rec Tap, St3.5 X 18, (6)				$ 4.25
66	5304483478		Screw, Dispenser Mtg., (6)		Appelez-nous	-
67	5304482427		Gasket, Vent, To Console		Appelez-nous	-
68	5304512886		Latch, Door				$ 66.15
69	5304483463		Switch, Micro, (2), Latch Assembly			Immediately	$ 59.28
70	5304482430		Cover, Control Board		Appelez-nous	-
71	5304482431		Seal, Contol Cover		Appelez-nous	-
72	5304482432		Cover, Handle, White		Appelez-nous	-
73	5304522738		Control Assembly, Complete, W/display Brd		Appelez-nous	-
74	5304482434		Screw, Rec Tap, St3.5 X 12, (2)		Appelez-nous	-
78	5304482435		Lens Cover, Led Lights				$ 9.19
79	5304482436		Console Assembly, White				$ 102.73
80	5304482438		Insert, Console Panel, White				$ 14.81
81	5304482440		Door, Outer, White				$ 204.59
82	5304482443		Insulation, Door Inner, Sound Proof		Appelez-nous	-
83	5304482444		Insulation, Door Inner, Polystyrene		Appelez-nous	-
84	5304482445		Liner, Door, Inner				$ 275.16
86	5304482447		Guard, Door, White, Side, (2)		Appelez-nous	-
87	5304482449		Bracket, Dispenser Mtg., (2)		Appelez-nous	-
88	5304509278		Dispenser, Assembly				$ 231.58
89	5304482451		Screw, Rec Tap, St3.5 X 13, (6)				$ 4.94
90	5304482452		Cover, Door Vent				$ 19.85
