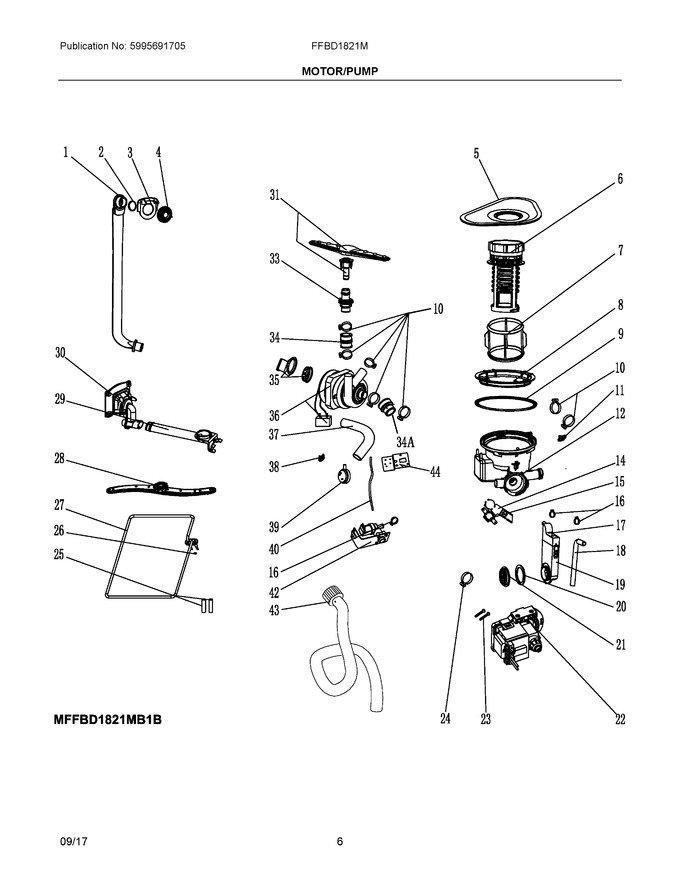

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304512881		Delivery Hose, Assembly				$ 53.50
2	5304482363		O Ring, Delivery Tube, (2)				$ 7.80
3	5304483656		Casing, Guide, Delivery Tube				$ 13.28
4	5304483657		Nut, Pipe, Delivery Tube				$ 15.08
5	5304482464		Filter Assembly, Screen, Stainless				$ 103.01
6	5304483438		Filter Assembly				$ 25.94
7	5304483439		Filter Assembly, Micro				$ 51.46
8	5304483440		Nut, Sump Mtg.				$ 19.14
9	5304512882		Gasket, Sump				$ 24.57
10	5304482453		Clamp, Hose, Otk310, (7)				$ 19.52
11	5304483441		Thermistor			Immediately	$ 43.95
12	5304512883		Sump Assembly				$ 127.96
14	5304482470		Bracket, Thermostat				$ 19.74
15	5304482472		Thermostat, 90				$ 21.06
16	5304460970		Clamp, Hose, Otk175, (5)				$ 13.46
17	5304482391		Cover, Water Tunnel				$ 18.43
18	5304483658		Hose, Inlet, Tunnel		Appelez-nous	-
19	5304482392		Tunnel, Water				$ 27.45
20	5304482394		Gasket, Ring Nut			Immediately	$ 13.74
21	5304483443		Ring Nut				$ 12.55
22	5304483444		Pump, Drain			Immediately	$ 175.00
23	5304482501		Screw, Rec, St4 X 15.5, (2)				$ 8.45
24	5304483445		Clamp, Hose, Otk286, (2)				$ 18.38
25	5304482462		Casing, Haeting Element, (2)		Appelez-nous	-
26	5304483446		Nut, Heating Element		Appelez-nous	-
27	5304483447		Element Assembly, Heating				$ 165.11
28	5304483448		Spray Arm, Assembly, Upper				$ 51.61
29	5304483449		Conduit, Spray Arm, Upper				$ 18.53
30	5304482489		Delivery Assembly, Spray Arm, Middle				$ 22.16
31	5304512884		Spray Arm, Assembly, Lower, W/axis				$ 104.19
33	5304483452		Connector Assembly, Spray Arm, Lower				$ 33.86
34	5304512129		Connector, Tubing				$ 13.74
35	5304483453		Support Assembly, Motor, W/pad				$ 31.03
36	5304512880		Pump Assembly, Motor, W/capacitor				$ 365.13
37	5304482473		Duct, Connecting, External Pipe				$ 24.68
38	5304482390		Clamp, Hose, 14.9 X 1.8				$ 17.72
39	4056016522		Switch, Pressure   (Replaces: 5304482397)				$ 25.52
40	5304483455		Hose, Pressure Switch				$ 20.48
42	5304482406		Valve, Inlet			Immediately	$ 69.62
43	154225602		Hose, Drain   (Replaces: 5304483456)			Immediately	$ 45.37
44	5304483457		Support, Pressure Switch		Appelez-nous	-
34A	5304482455		Duct, Connecting, (2)				$ 20.58
