SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven, Cabinet

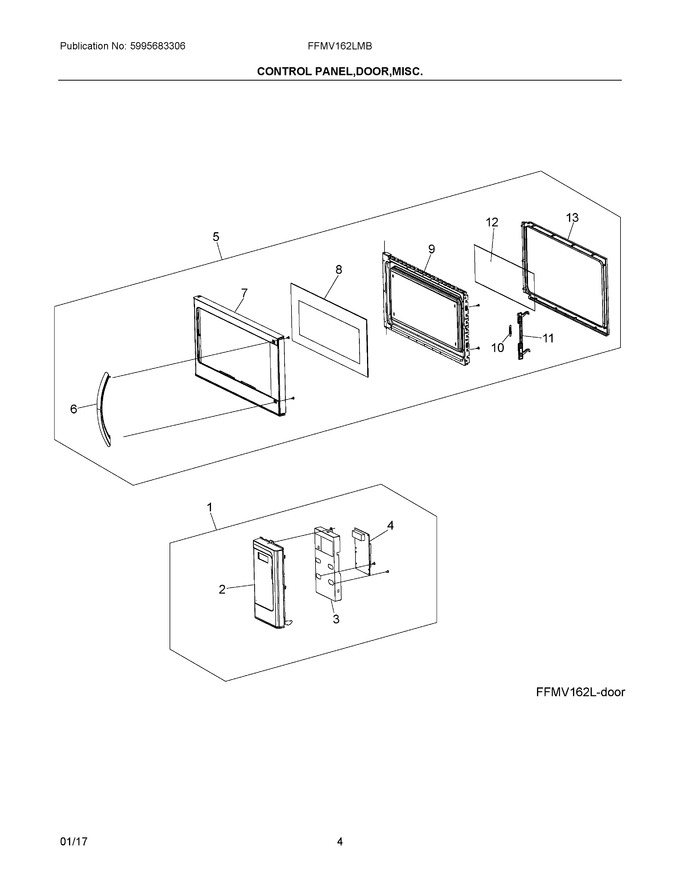

03 - Control Panel, Door, Misc


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304477376		Control Panel, W/membrane, Silvr				$ 280.82
3	5304464065		Panel, Control Mount, Bracket				$ 68.04
4	5304507078		Control Board, Printed Circuit		Appelez-nous	-
5	5304477386		Door Assembly, Silver				$ 477.33
6	5304507079		Handle Assembly, Door, Black		Appelez-nous	-
7	5304538976		Panel, Outer Door, Silver   (Replaces: 5304477397)				$ 41.59
8	5304464067		Panel, Glass, Black, Outer Door			Immediately	$ 138.09
9	5304472444		Panel, Inner Door, Black				$ 280.49
10	5304521953		Spring, Door Latch   (Replaces: 5304464069)				$ 7.23
11	4056021605		Latch, Door   (Replaces: 5304477389)			Immediately	$ 3.69
12	5304509640		Choke Cover, Inner Door   (Replaces: 5304464071)				$ 50.61
13	5304474405		Seal, Door, Mylar Film				$ 18.44

    View Diagram in Separate Window       Print Part List
