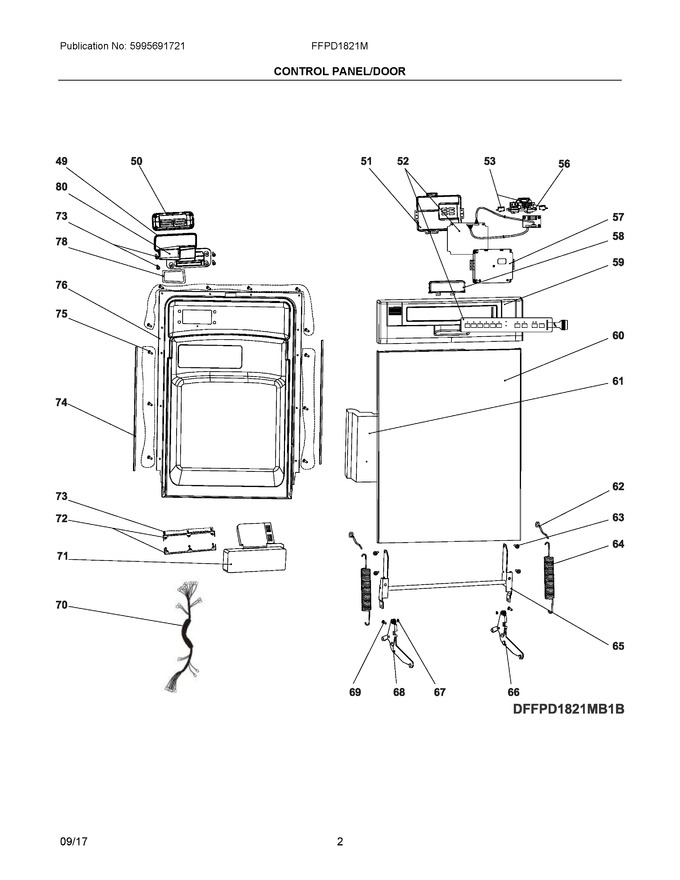

02 - Control Panel/door


03 - Tub/frame/wrapper


04 - Motor/pump


05 - Racks/back Plate


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
49	5304482423		Gasket, Vent, To Door Liner				$ 20.63
50	5304482452		Cover, Door Vent				$ 19.85
51	5304483458		Cover, Control Board				$ 55.76
52	5304512885		Control Board, Assembly, Black, W/touch Pad Asy				$ 335.74
53	5304483463		Switch, Micro, (2), Latch Assembly			Immediately	$ 59.28
56	5304512886		Latch, Door				$ 66.15
57	5304512887		Box, Main Board				$ 106.27
58	5304483467		Cover, Handle, Black				$ 19.06
59	5304512888		Console, Assembly, Black				$ 65.50
60	5304483511		Door, Outer, Black				$ 148.85
61	5304483474		Foam Assembly, Door, Inner		Appelez-nous	-
62	5304482486		Bolt, Door Spring, (2)				$ 17.64
63	5304482478		Screw, Rec, M5 X 6, (5)		Appelez-nous	-
64	5304483475		Spring, Door Hinge, (2)				$ 19.60
65	5304483476		Hinge Assembly, Door				$ 60.69
66	5304512889		Hinge, Door, Rh		Appelez-nous	-
67	5304482482		Ring, Clamping, (2)		Appelez-nous	-
68	5304512890		Hinge, Door, Lh		Appelez-nous	-
69	5304482485		Pin, Hinge Joint, (2)				$ 12.71
70	5304483477		Harness, Wiring, Main		Appelez-nous	-
71	5304509267		Dispenser, Assembly				$ 188.69
72	5304482449		Bracket, Dispenser Mtg., (2)		Appelez-nous	-
73	5304483478		Screw, Dispenser Mtg., (6)		Appelez-nous	-
74	5304482448		Guard, Door, Black, Side, (2)				$ 10.97
75	5304482451		Screw, Rec Tap, St3.5 X 13, (6)				$ 4.94
76	5304483479		Liner Assembly, Door, Inner				$ 278.78
78	5304483480		Gasket, Vent				$ 16.75
80	5304483481		Vent Assembly, Door				$ 26.94
