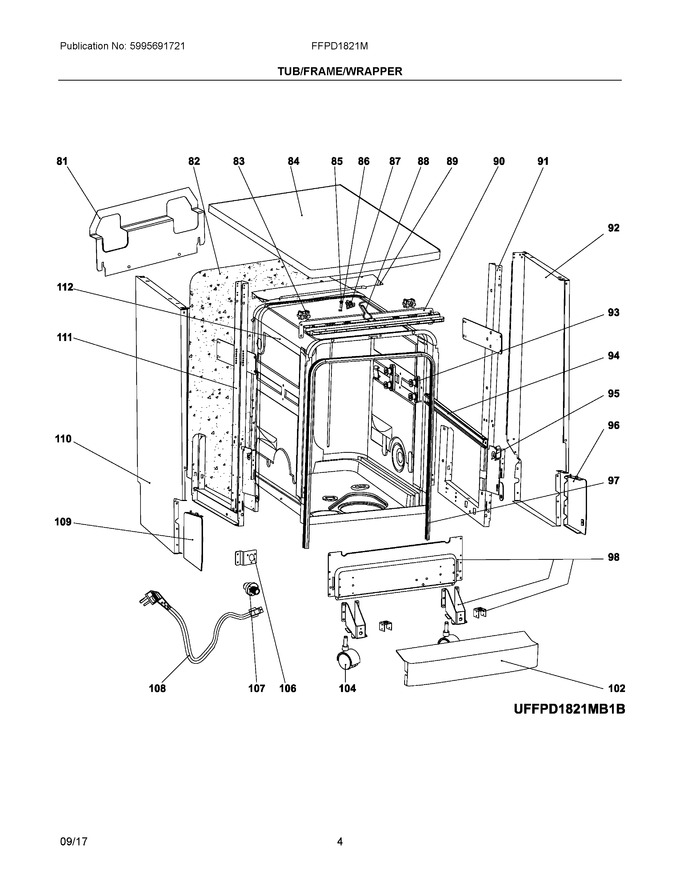

03 - Tub/frame/wrapper


04 - Motor/pump


05 - Racks/back Plate


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
81	5304512898		Brace, Back, Lower		Appelez-nous	-
82	5304483482		Insulation, Blanket, Tub		Appelez-nous	-
83	5304483483		Block, Top, White, (2)		Appelez-nous	-
84	5304483515		Top Panel, White				$ 290.01
85	5304482376		Screw, Rec Cntrsunk Hd, M4 X 16				$ 6.85
86	5304482375		Locknut, M4				$ 5.07
87	5304512893		Block, Coupling				$ 3.69
88	5304483485		Hook, Door Lock				$ 19.89
89	5304483516		Brace, Back, Upper		Appelez-nous	-
90	5304483486		Brace Assembly, Upper, White, Front		Appelez-nous	-
91	5304483518		Frame Assembly, Rh		Appelez-nous	-
92	5304513725		Side Panel, White, Rh		Appelez-nous	-
93	5304512894		Roller Assembly, Tub, (4)		Appelez-nous	-
94	5304483489		Rail, Guide, Upper Rack, (2)				$ 43.24
95	5304483632		Cap, Guide Rail, (4)		Appelez-nous	-
96	5304483521		Toe Plate, Side, White, Rh				$ 17.64
97	5304512895		Gasket, Tub			Immediately	$ 53.91
98	5304512901		Brace, Front, Lower				$ 129.83
102	5304483528		Toe Plate, Front, White		Appelez-nous	-
104	5304483530		Roller Assembly, Bottom, (4)				$ 46.73
106	5304512902		Bracket, Hose, Drain Pump		Appelez-nous	-
107	5304483533		Connector, Hose, Drain Pump		Appelez-nous	-
108	5304483534		Power Cord, Electric				$ 55.67
109	5304483535		Toe Plate, Side, White, Lh				$ 17.64
110	5304513726		Side Panel, White, Lh		Appelez-nous	-
111	5304485739		Frame Assembly, Lh		Appelez-nous	-
112	5304483540		Tub Assembly		Appelez-nous	-
