View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Door

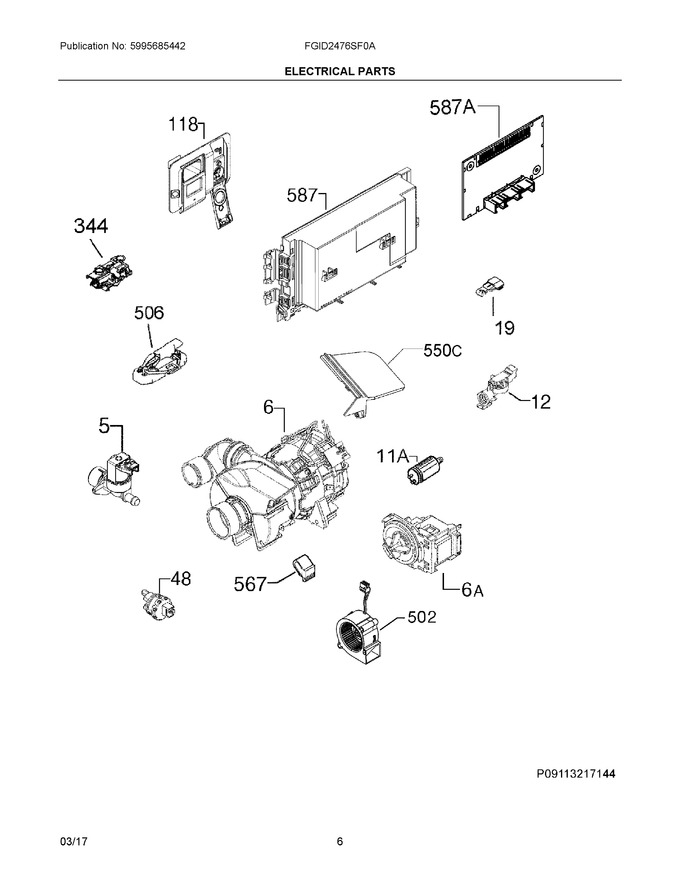

04 - Electrical Parts
05 - Wash System
06 - Tub & Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 807445905 | Valve, Fill (Replaces: 807445904) |
|
Immediately | $ 92.83 | ||||
| 6 | 5304514365 | Pump, Circulation, Complete, 120v, W/heater (Replaces: A00210627) |
|
Immediately | $ 340.28 | ||||
| 12 | A00055408 | Switch, Pressure (Replaces: A00055406) |
|
Immediately | $ 83.50 | ||||
| 19 | 117452801 | Lamp, Door Indicator |
|
$ 279.56 | |||||
| 48 | A00040106 | Sensor, Turbidity (Replaces: A00040101) |
|
Immediately | $ 62.90 | ||||
| 118 | A00130341 | Dispenser, Detergent (Replaces: A00130305) |
|
Immediately | $ 96.58 | ||||
| 344 | 111315040 | Door Lock, Assembly |
|
Immediately | $ 210.12 | ||||
| 502 | A05660401 | Blower Assembly, Radial |
|
- | |||||
| 506 | A00056506 | Switch Assembly, Float (Replaces: A00056504) |
|
Immediately | $ 52.28 | ||||
| 567 | 117193401 | Buffer, Motor Bracket, Rubber |
|
$ 73.02 | |||||
| 587 | 973911990028004 | Control Assembly, Configured, Pb200 (Replaces: 117499420) |
|
- | |||||
| 11A | A00194401 | Capacitor, Motor, 8 Uf |
|
$ 158.94 | |||||
| 550C | 808089001 | Cover, Motor, Drip Protection |
|
- | |||||
| 587A | A06115601 | Board, Use Interface, Ui2491 |
|
Immediately | $ 122.18 | ||||
| 6A | A00044305 | Drain Pump, 60hz |
|
Immediately | $ 144.29 | ||||
| NI | 807556302 | Harness, Wiring, Pcb, Heater |
|
$ 138.20 | |||||
| NI | A05193103 | Harness, Wiring, Pcb, Main |
|
$ 133.98 | |||||
| NI | A00233006 | Harness, Wiring, Pcb, Door |
|
$ 153.99 | |||||
| NI | 405526082 | Screw, Kit, 4-2 X 11, (6 Pcs), Detergent Disp. |
|
$ 6.51 |
