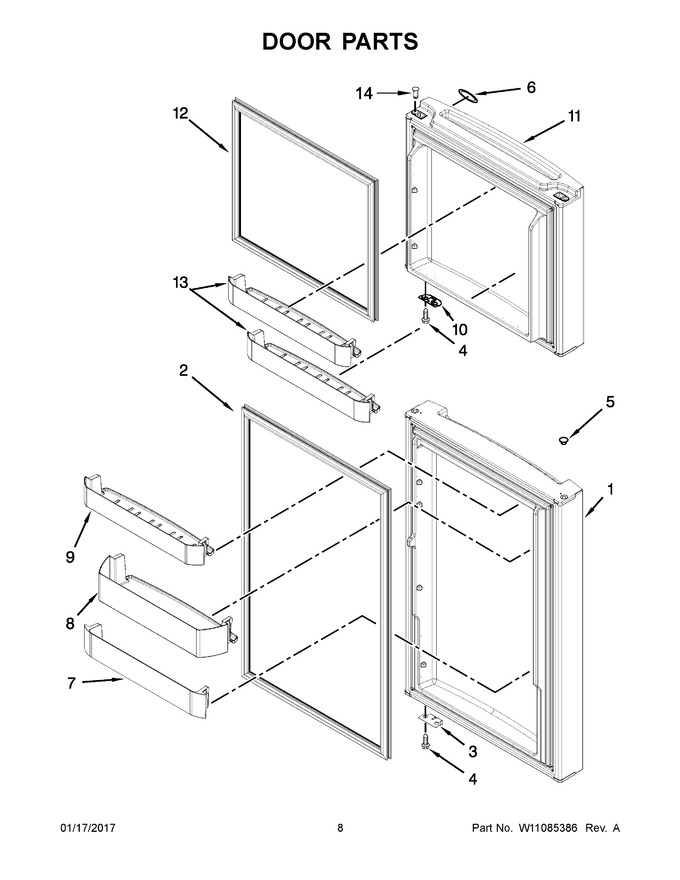

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10751127		Door, Refrigerator (includes Items 2, 3, 5 & Molded Handle) (white)		Appelez-nous	-
2	W11228130		Gasket, Refrigerator Door (white)   (Replaces: W10507443)				$ 249.02
3	W10492012		Bracket, Door Stop				$ 14.45
4	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.07
5	WP2212648		Plug, Hole (white)   (Replaces: 2212648)				$ 7.02
6	W11178521		Nameplate (white)   (Replaces: W10481434)			Immediately	$ 56.82
7	W11199415		Trim, Door Shelf (bottom)   (Replaces: W10364009)				$ 84.58
8	W11179386		Door Bin, Gallon   (Replaces: W10364008)				$ 138.02
9	WPW10364007		Bin, Shallow Door   (Replaces: W10364007)				$ 65.94
10	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
11	W10751124		Door, Freezer (includes Items 10, 12 & Molded Handle) (white)		Appelez-nous	-
12	W11625036		Gasket, Freezer Door (white)   (Replaces: W10507440)				$ 202.93
13	WPW10370890		Bin, Freezer Door   (Replaces: W10370890)				$ 65.04
14	W11759045		Thimble-top (white)   (Replaces: W10492018)			Immediately	$ 10.58
11A	W10751121		Door, Freezer (includes Items 10, 12 & Molded Handle) (black)		Appelez-nous	-
11B	LW10751123		Door, Freezer (includes Items 10, 12 & Molded Handle) (stainless)   (Replaces: W10751123)				$ 611.03
12A	W11625037		Gasket, Freezer Door (black)   (Replaces: W10507441)		Appelez-nous	-
12B	W11625051		Gasket, Freezer Door (grey)   (Replaces: W10507442)				$ 196.16
14A	W11189115		Thimble-top (black)   (Replaces: W10334042)				$ 10.89
14B	W11676573		Thimble-top (grey)   (Replaces: W10492022)				$ 12.69
1A	W10751125		Door, Refrigerator (includes Items 2, 3, 5 & Molded Handle) (black)		Appelez-nous	-
1B	W10751126		Door, Refrigerator (includes Items 2, 3, 5 & Molded Handle) (stainless)		Appelez-nous	-
2A	W11625052		Gasket, Refrigerator Door (black)   (Replaces: W10507447)				$ 197.28
2B	W11625055		Gasket, Refrigerator Door (grey)   (Replaces: W10507460)				$ 199.04
5A	WP2212651		Plug, Hole (black)   (Replaces: 2212651)				$ 20.75
5B	WP2254517		Plug, Hole (grey)   (Replaces: 2254517)			Immediately	$ 20.86
6A	W11178521		Nameplate (grey)   (Replaces: W10481433)			Immediately	$ 56.82
