View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

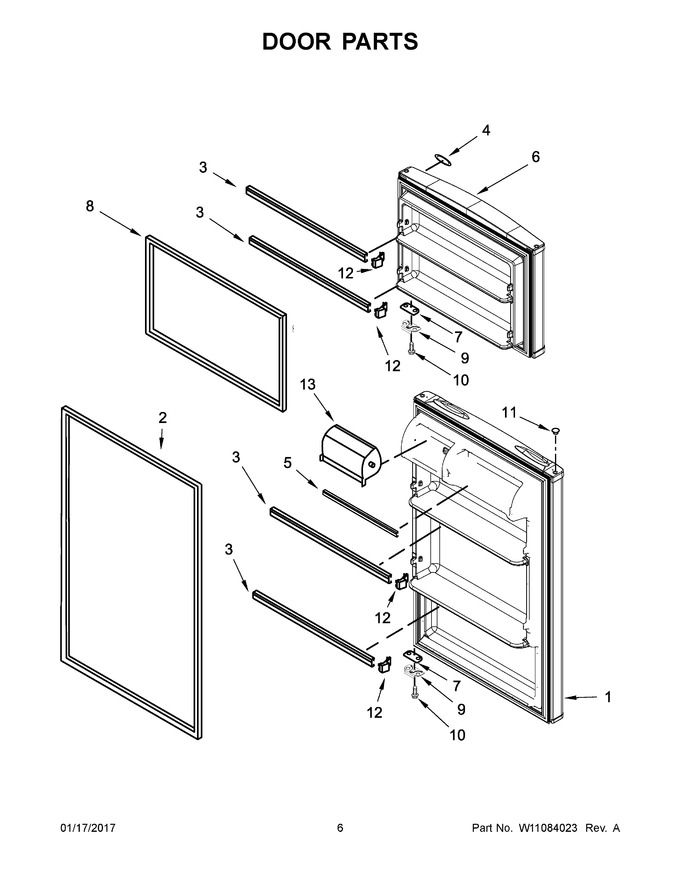

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10657163 | Refrigerator Door (includes Illustration 2 & Molded Door Handle) (white) (Replaces: W10657163) |
|
$ 430.17 | |||||
| 2 | 2319266W | Door Gasket, Magnetic (white) (Replaces: 2264729) |
|
$ 295.55 | |||||
| 3 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 83.25 | ||||
| 4 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 56.82 | ||||
| 5 | W11129820 | Trim, Door (Replaces: W10234242) |
|
Immediately | $ 109.15 | ||||
| 6 | LW10657164 | Freezer Door (includes Illustration 8 & Molded Door Handle) (white) (Replaces: W10657164) |
|
$ 316.81 | |||||
| 7 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.47 | ||||
| 8 | WP2319263W | Door Gasket, Magnetic (white) (Replaces: 2264726) |
|
Immediately | $ 135.93 | ||||
| 9 | W10492012 | Bracket, Door Stop |
|
$ 14.45 | |||||
| 10 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.49 | |||||
| 11 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
$ 7.02 | |||||
| 12 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 13 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 52.88 | ||||
| 11A | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 20.75 | |||||
| 11B | WP2254517 | Hole Plug (grey) (Replaces: 2254517) |
|
Immediately | $ 20.86 | ||||
| 1A | LW10657316 | Refrigerator Door (includes Illustration 2 & Molded Door Handle) (black) (Replaces: W10657316) |
|
$ 432.60 | |||||
| 1B | LW10681318 | Refrigerator Door (includes Illustration 2 & Molded Door Handle) (stainless) (Replaces: W10681318) |
|
$ 409.23 | |||||
| 2A | 2319266B | Door Gasket, Magnetic (black) (Replaces: 2264725) |
|
$ 322.72 | |||||
| 2B | W10244874 | Door Gasket, Magnetic (grey) |
|
$ 199.92 | |||||
| 4A | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 56.82 | ||||
| 6A | LW10657315 | Freezer Door (includes Illustration 8 & Molded Door Handle) (black) (Replaces: W10657315) |
|
$ 338.27 | |||||
| 6B | LW10681389 | Freezer Door (includes Illustration 8 & Molded Door Handle) (stainless) (Replaces: W10681389) |
|
$ 427.13 | |||||
| 7A | 2258681B | Shim, Door Stop (black) |
|
$ 38.85 | |||||
| 8A | WP2319263B | Door Gasket, Magnetic (black) (Replaces: 2264722) |
|
Immediately | $ 229.95 | ||||
| 8B | W11661186 | Door Gasket, Magnetic (grey) (Replaces: W10244875) |
|
Immediately | $ 197.19 |
