01 - Cover Sheet

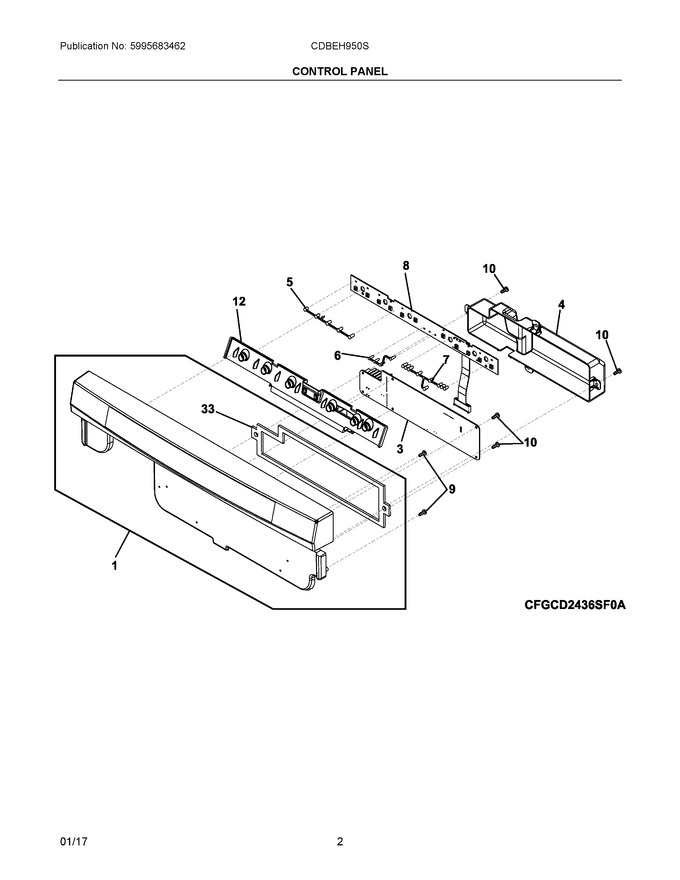

02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507351 | Console Assembly, W/overlay, Black, And Gasket |
|
- | |||||
| 3 | 807128502 | Board, Control |
|
$ 224.11 | |||||
| 4 | 5304517614 | Cover, Control (Replaces: 808950401) |
|
$ 20.24 | |||||
| 5 | 5304506777 | Light Guide, Cycles, Lh |
|
$ 14.18 | |||||
| 6 | 5304506782 | Light Guide, Start/stop, Center |
|
$ 14.18 | |||||
| 7 | 5304506781 | Light Guide, Rh |
|
$ 13.46 | |||||
| 8 | 5304506807 | Board, User Interface |
|
$ 65.06 | |||||
| 9 | 154783101 | Screw, Plt, 8-10 |
|
Immediately | $ 7.09 | ||||
| 10 | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 9.22 | |||||
| 12 | 5304506776 | Handle, Latch |
|
$ 31.10 | |||||
| 33 | 154478901 | Gasket, Cover |
|
$ 61.66 | |||||
| NI | 5304506794 | Harness, Wiring, Main |
|
$ 134.23 | |||||
| NI | 808612223 | Energy Guide |
|
- | |||||
| NIA | 5304506783 | Screw, Latch Handle, (6) |
|
$ 2.18 |
