View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Backguard

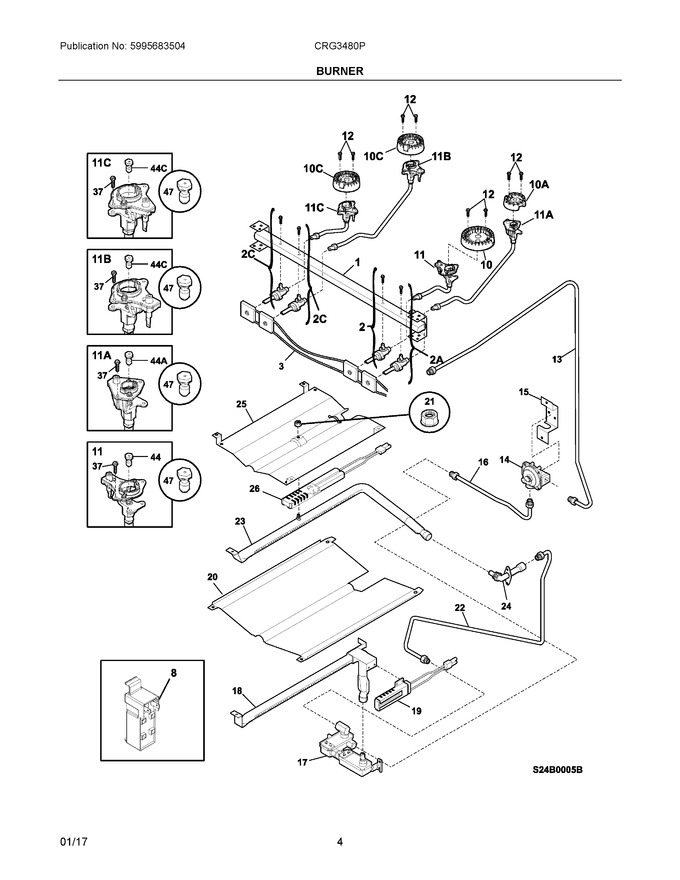

03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316417900 | Manifold Pipe |
|
$ 146.71 | |||||
| 2 | 5304506549 | Valve, Top Burner, Blue Stem, 1125btu |
|
Immediately | $ 62.34 | ||||
| 3 | 5304506555 | Harness, Ignition |
|
$ 78.52 | |||||
| 8 | 808608802 | Spark Module |
|
Immediately | $ 82.93 | ||||
| 10 | 316438600 | Burner, Sealed, 14k |
|
Immediately | $ 79.80 | ||||
| 11 | 316536614 | Ignitor/orifice Assy., Top Burner, Right Front, 14k, W/holder, Tube |
|
$ 112.27 | |||||
| 12 | 316540900 | Screw, Burner, Head Mtg, (8) |
|
Immediately | $ 15.17 | ||||
| 13 | 316489100 | Tube, 3/8, Aluminum, Rgltr To Manf, With Fittings |
|
$ 77.97 | |||||
| 14 | 5304521339 | Regulator, Pressure (Replaces: 316091706) |
|
Immediately | $ 105.42 | ||||
| 15 | 316091600 | Bracket, Regulator |
|
$ 73.56 | |||||
| 16 | 5304507348 | Tube, Valve-regulator, 3/8 |
|
Immediately | $ 47.03 | ||||
| 17 | 316031501 | Valve, Safety |
|
Immediately | $ 296.26 | ||||
| 18 | 316404400 | Burner, Oven |
|
$ 109.10 | |||||
| 19 | 316489403 | Ignitor, Bake (Replaces: 5304508786) |
|
Immediately | $ 113.15 | ||||
| 20 | 5304519024 | Baffle, Oven Burner (Replaces: 316401401) |
|
Immediately | $ 80.39 | ||||
| 21 | 154079601 | Nut, Hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 22 | 5304507768 | Tube, Valve-mixer, 3/8 |
|
$ 50.06 | |||||
| 23 | 316404302 | Burner, Broiler |
|
$ 104.18 | |||||
| 24 | 5304516894 | Elbow, Mixer (Replaces: 316409700) |
|
$ 87.21 | |||||
| 25 | 5304497666 | Baffle, Broiler |
|
$ 94.04 | |||||
| 26 | 5304506545 | Ignitor, Broiler |
|
Immediately | $ 94.21 | ||||
| 37 | 316240600 | Screw, Assy Mtg, (8), Ignitor/orifice |
|
Immediately | $ 12.13 | ||||
| 44 | 316527511 | Orifice, Burner, 14k |
|
$ 19.85 | |||||
| 10A | 316438200 | Burner, Sealed, 5k |
|
Immediately | $ 56.70 | ||||
| 10C | 316558300 | Burner, Sealed, 9.5k |
|
Immediately | $ 52.45 | ||||
| 11A | 316536610 | Ignitor/orifice Assy., Top Burner, Right Rear, 5k, W/holder, Tube |
|
Immediately | $ 92.38 | ||||
| 11B | 316536600 | Ignitor/orifice Assy., Top Burner, Left Rear, 9.5k, W/holder, Tube |
|
$ 124.27 | |||||
| 11C | 316536602 | Ignitor/orifice Assy., Top Burner, Left Front, 9.5k, W/holder, Tube |
|
$ 132.62 | |||||
| 2A | 5304506547 | Valve, Top Burner, Black Stem, 500btu |
|
$ 69.01 | |||||
| 2C | 5304506548 | Valve, Top Burner, Green Stem, 850btu |
|
Immediately | $ 82.66 | ||||
| 44A | 316527504 | Orifice, Burner, 5k |
|
$ 22.68 | |||||
| 44C | 316527500 | Orifice, Burner, 9.5k |
|
$ 21.40 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316215600 | Screw, Valve Mtg., 1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316498100 | Shield, Wire, Safety Valve |
|
$ 15.17 | |||||
| NI | 241500305 | Screw, Self Pierce, #8, 18x.63 (Replaces: 297174300) |
|
$ 3.03 | |||||
| NI | 5304535516 | Harness-ignitor (Replaces: 316580601) |
|
$ 68.28 | |||||
| NIA | 316021104 | Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt |
|
$ 7.79 | |||||
| NIA | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NIA | 316401500 | Cover, Broil Ignitor |
|
$ 12.89 | |||||
| NIB | 316257400 | Bracket, Spark Module |
|
$ 15.17 |
