SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Drawer, Baskets


03 - Fresh Food Door


04 - Cabinet

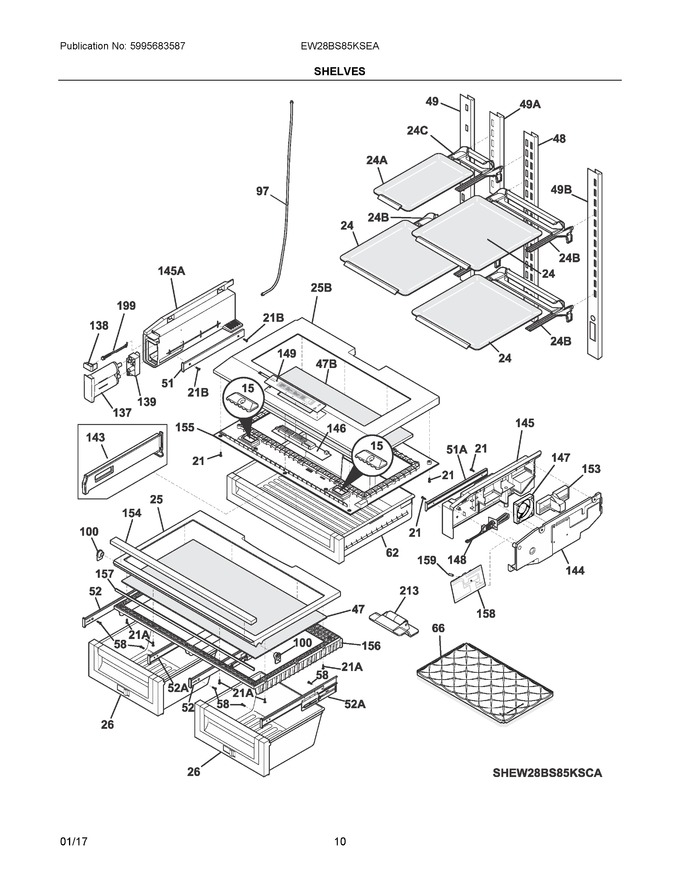

05 - Shelves


06 - Cooling System


07 - Controls & Ice Dispenser


08 - Ice Container


09 - Fresh Food Ice Maker


10 - Freezer Ice Maker


11 - Wiring Diagram


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	241891104		Light-led		Appelez-nous	-
21	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
24	242128401		Shelf-glass, Formed				$ 279.82
25	241802206		Frame-crisper Cover, Upper				$ 246.12
26	241772807		Pan-crisper				$ 254.73
47	241768801		Insert-pan Cover, Glass				$ 72.66
48	242122101		Channel-shelf Mtg, Center				$ 80.09
49	242122204		Channel-shelf Mtg, Side, Lh		Appelez-nous	-
51	242156404		Slide-deli Soft Close, Bm, Lh				$ 190.66
52	242156507		Slide-crisper Cover, Soft Close, Lh, Bm				$ 177.19
58	241941202		Screw, 8-18 X 3/8				$ 15.17
62	241827205		Pan-deli				$ 262.19
66	242131002		Mat-wine				$ 71.98
97	242220106		Tube-water, 5/16 - 58", Natural		Appelez-nous	-
100	241768601		Support-crspr Cover				$ 19.13
137	242175101		Filter-water, Water, Carbon Cassette, Front, With O'rings		Appelez-nous	-
138	241885901		Button-filter Release				$ 28.35
139	240396002		Base-water Filter			Immediately	$ 119.66
143	242151003		Divider-deli Pan				$ 109.36
144	241803902		Cover-deli Air Control				$ 127.96
145	241803804		Housing-deli Air Control				$ 133.35
147	241825704		Fan Assembly, Motor, With Blade				$ 289.58
149	242025901		Overlay, Electronic, Membrane Switch				$ 159.47
154	241879902		Trim-crisper Cover				$ 39.44
155	241803404		Frame-deli Cover, Lower				$ 204.12
156	241872005		Frame-crisper Cover, Lower				$ 151.73
157	241872201		Beam-crisper Cover				$ 53.85
158	241955004		Board-main Power, Ptd				$ 245.23
159	241815401		Cap, Pcba Hold Down		Appelez-nous	-
199	240397501		Rod				$ 55.57
213	242010901		Roller Assy, Deli Pan				$ 49.62
145A	242058710		Support, Rail				$ 120.50
146B	241958401		Control-electronic, Ptd				$ 272.87
148A	241782001		Heater-ptd, 115 V				$ 194.90
153A	241775301		Motor-damper				$ 227.24
21A	5304453707		Screw, Quad Hilo, #8-18 X 0.50, (2)   (Replaces: 241953901)			Immediately	$ 15.92
21B	241953902		Screw, Quad Hilo, #8-18 X 0.25   (Replaces: 241953907)			Immediately	$ 17.11
24A	242128402		Shelf-glass, Formed				$ 240.56
24B	242216402		Bracket-shelf, W/gasket				$ 273.05
24C	242216401		Bracket-shelf, W/gasket				$ 240.61
25B	5303918423		Cover-pan, Ptd, Cover Kit				$ 251.58
47B	241967401		Glass, 2 Pane Insulatd				$ 225.39
49A	5304531311		Channel-shelf Mtg, Center, Icemaker Shelf   (Replaces: 242122001)		Appelez-nous	-
49B	242122302		Channel-shelf Mtg, Side, Rh				$ 73.00
51A	242156402		Slide-deli Soft Close, Bm, Rh				$ 197.04
52A	242156508		Slide-crisper Cover, Soft Close, Rh, Bm				$ 145.69
NI	807332442		Label, Energy Guide		Appelez-nous	-
NI	5304521780		Harness-power Ptd   (Replaces: 241822602)				$ 23.51
NI	240451503		Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe				$ 3.79
NI	241835402		Harness-wiring, Mixing Valve				$ 23.39
NIA	240398401		Spring-filter Release Rod				$ 59.16
NIA	240527001		O-ring, Wtr Filter Base   (Replaces: 240526901)				$ 10.62
NIA	242130101		Clip, Retainer, Ptd Board		Appelez-nous	-
NIA	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63
NIA	241936201		Damper-rubber, Ptd Fan		Appelez-nous	-
NIA	241858401		Screw, #6 X 1/2 Hilo				$ 13.05
NIBA	241862501		Harness-wiring, Ptd Main W/led				$ 47.48
NIBA	5304469950		Sealant, Rubber Silicone			Immediately	$ 89.95
NIBB	241862601		Harness-wiring, Ptd W/led				$ 122.09

    View Diagram in Separate Window       Print Part List
