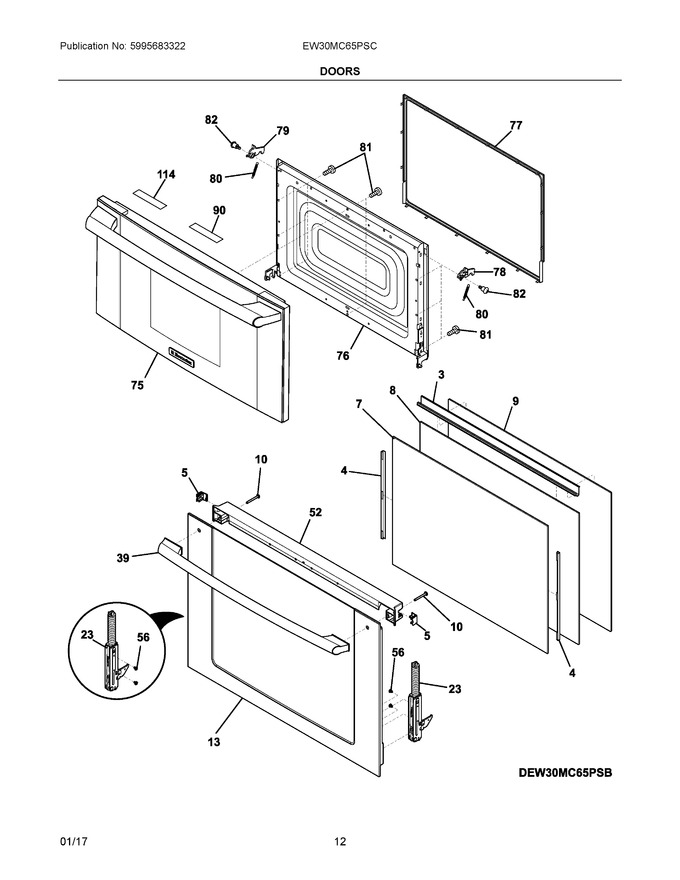

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304491779		Spacer, Door Glass, Top				$ 27.64
4	808983501		Spacer, Door Glass, Silicone, (2)			Immediately	$ 28.96
5	139010800		Cap, Screw Hole, Trim, (2)				$ 16.30
7	139010501		Glass, Thermal, Inner, Hb11 #2   (Replaces: 139010505)				$ 168.69
8	139010500		Glass, Thermal, Inner, Hb11 #1   (Replaces: 139010504)				$ 175.94
9	5304505655		Glass, Door, Inner   (Replaces: 139010402)				$ 480.29
10	316439507		Screw, Handle Mtg., 10-24 X 1.77", (2)				$ 21.97
13	5304490890		Door Assembly, Outer, Metal/glass, Stainless/black, Lower Door				$ 451.90
23	139010302		Hinge, Door, Yellow, Dual Spring				$ 121.91
39	316380802		Handle, Door, Stainless				$ 250.86
52	5304494448		Trim Assembly, Door, Top				$ 157.74
56	807286001		Screw, 10-32 X 1/4				$ 12.02
75	5304503733		Door Assembly, Complete, Stainless, W/handle-badge				$ 1,277.96
76	5304471512		Panel, Inner Door				$ 357.92
77	5304470579		Frame, Inner Door, Choke Cover				$ 87.48
78	5304491054		Latch Head, Right Side				$ 54.58
79	5304490142		Latch Head, Left Side			Immediately	$ 58.56
80	5304503735		Spring, Latch Head, (2)				$ 26.54
81	5304451561		Screw, 4 Mm X 8 Mm				$ 16.63
82	5304470583		Screw				$ 13.01
90	5304451534		Label, User Caution, French				$ 3.55
114	5304440346		Label, User Caution				$ 34.73
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NIA	139022104		Insualtion, Door, (2)		Appelez-nous	-
