FGHC2355PFCC | TransGlobal : Appliance Model Lookup

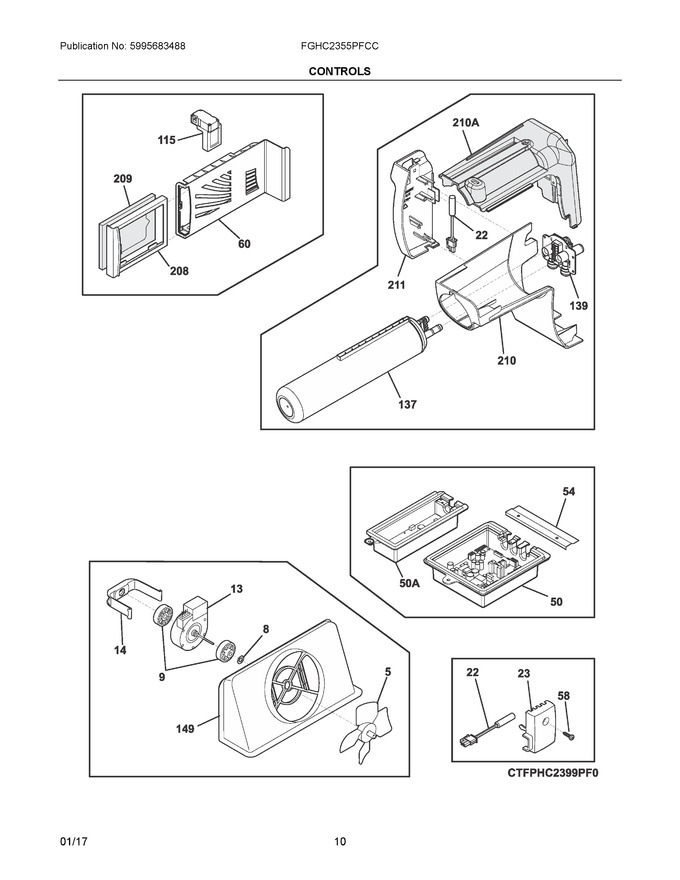

Diagram #	Part Number	Description	Availability	Ships	Price
5	5308000010	Fan Blade, Red, Evaporator Fan		Immediately	$ 49.03
8	215474201	Washer, "slinger", Nylon, Evap Fan Shaft		Immediately	$ 18.43
9	241518301	Bushing, Motor Mounting			$ 66.63
13	242290001	Motor-blower			$ 156.47
14	242135301	Clip, Evap Fan Motor, Evap Fan Motor			$ 7.79
22	240597220	Sensor, Temperature, 10k, Ntc (Replaces: 240597203)		Immediately	$ 5.16
23	241512901	Cover-sensor			$ 83.49
50	5304507528	S/a Main Control Iso Board, 50			$ 271.45
54	807854301	Support, Housing, Main Board			$ 45.36
58	5304455650	Screw, Hex Washer Head, 8-15a X 0.625, Low Profile			$ 14.18
60	242286101	Housing-diffuser & Air Filter			$ 43.95
115	241853801	Damper Assy, W/seal			$ 157.35
137	ULTRAWF	Filter-water (Replaces: 242294401)		Immediately	$ 116.23
139	242009604	Base-water Filter (Replaces: 242009601)		Immediately	$ 33.14
149	242204504	Shroud-evap Fan Mtg (Replaces: 241517601)			$ 38.68
208	241754301	Sleeve, Air Filter, Front			$ 38.28
209	EAFCBF	Filter, Air (Replaces: 242047801)		Immediately	$ 27.64
210	241983813	Housing-water Filtr			$ 34.73
211	242286201	Cover, Water Filter			$ 20.84
210A	241998303	Mount-water Filter (Replaces: 241998302)			$ 14.41
50A	241891610	Board-main, Led			$ 253.03
NI	241500303	Screw, Hex Washer Head, 8-18ab X 1/2		Immediately	$ 4.55
NIA	5304453707	Screw, Plask, #8-18 X .500 (Replaces: 240363402)		Immediately	$ 15.92
NIA	241852502	Clip, Retainer, Harness	Appelez-nous	-
NIA	241528304	Seal, Foam, Evap Fan Assy	Appelez-nous	-
NIA	242156301	Insulation-air Duct	Appelez-nous	-
NIAA	242285301	Clip, Retainer, Harness	Appelez-nous	-
NIB	242036802	Clip, Plastic	Appelez-nous	-
