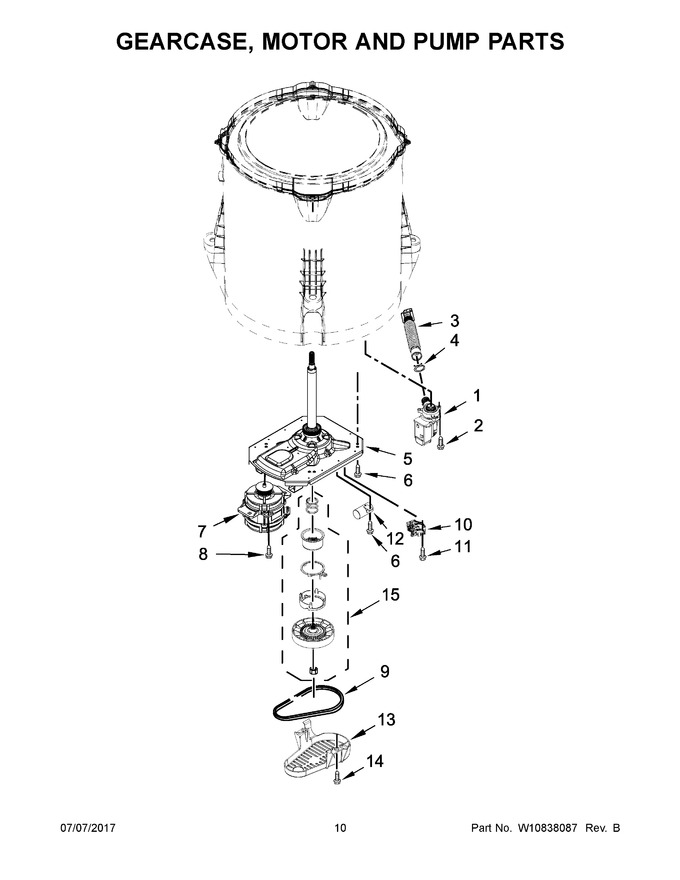

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10276397 | Pump Assembly, Drain (Replaces: W10276397) |
|
Immediately | $ 124.51 | ||||
| 2 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 7.16 | |||||
| 3 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10763078) |
|
Immediately | $ 30.67 | ||||
| 4 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 7.55 | ||||
| 5 | W11159068 | Assembly, Gearcase (Replaces: W11092242) |
|
Immediately | $ 372.86 | ||||
| 6 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 6.47 | ||||
| 7 | W11222082 | Motor, Drive (Replaces: W10850134) |
|
Immediately | $ 236.54 | ||||
| 8 | W11685857 | Screw (Replaces: W10094780) |
|
$ 12.69 | |||||
| 9 | W11213879 | Belt, Drive (Replaces: W10850138) |
|
Immediately | $ 25.07 | ||||
| 10 | W11212745 | Actuator, Shift (Replaces: W10389471) |
|
Immediately | $ 74.25 | ||||
| 11 | W11596033 | Screw (Replaces: 9741052) |
|
$ 12.20 | |||||
| 12 | W11227944 | Capacitor, Motor Run (Replaces: W10625042) |
|
Immediately | $ 227.54 | ||||
| 13 | WPW10427633 | Shield, Pulley Cover (Replaces: W10427633) |
|
Immediately | $ 42.67 | ||||
| 14 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 7.04 | ||||
| 15 | W10721967 | Splutch Kit (60hz) |
|
Immediately | $ 50.11 |
