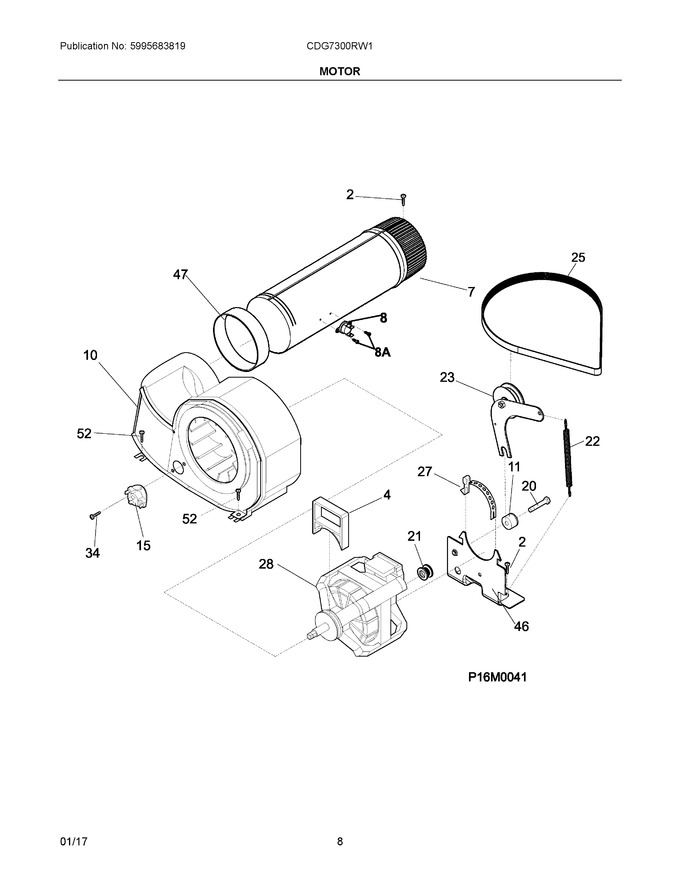

05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
4	131435200		Lock, Blower Housing				$ 73.02
7	5304509710		Tube, Exhaust, Rear				$ 26.94
8	134711401		Limiter, Thermal Exhaust, Flush Mount			Immediately	$ 35.48
10	137551110		Blower Housing, W/cover & Wheel			Immediately	$ 229.37
11	131749800		Spacer, Idler				$ 43.95
15	134587700		Thermistor, Control			Immediately	$ 56.39
20	131017900		Bolt, Hex Head, 1/4-20t X 1.25, Thread Cutting				$ 14.46
21	134693800		Pulley, Motor				$ 16.97
22	131601000		Spring, Idler Arm			Immediately	$ 82.20
23	134793511		Idler Arm Assy, W/pulley   (Replaces: 134793500)			Immediately	$ 44.53
25	134719300		Belt, "h", Poly V, 5 Rib			Immediately	$ 68.68
27	134242400		Clamp, Motor Mtg.			Immediately	$ 35.76
28	809096302		Motor, Main Drive, 115v 60hz   (Replaces: 809096301)				$ 313.25
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
46	134693500		Bracket, Motor Mounting				$ 38.12
47	131633300		Seal, Exhaust Tube				$ 19.06
52	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
8A	134935200		Screw, #6 Pan Head, #8-32 X .25, Quadrex				$ 13.46
