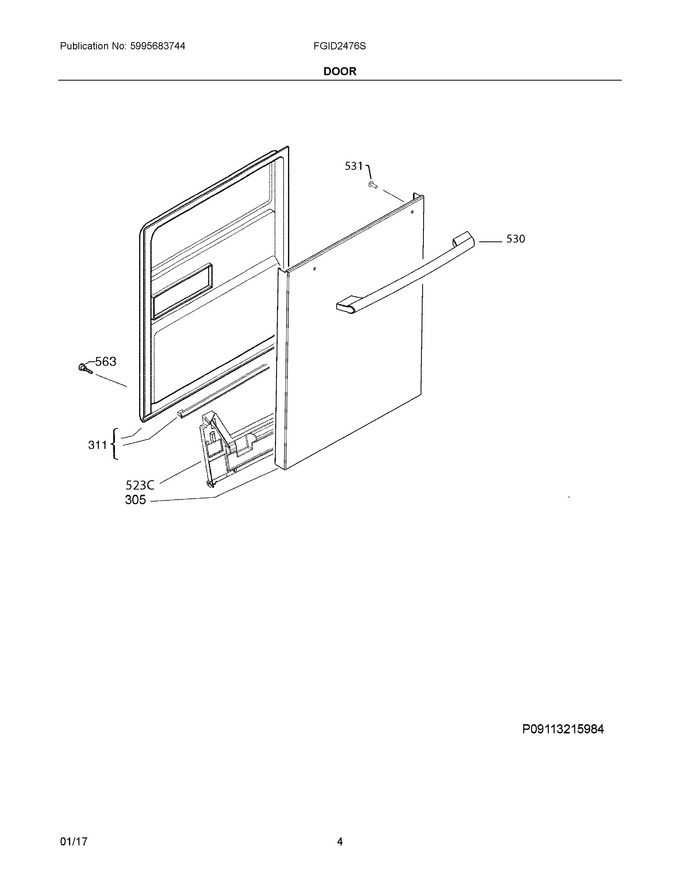

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 305 | 5304503755 | Outer Door, White |
|
$ 318.57 | |||||
| 311 | A00010702 | Liner, Door |
|
$ 397.30 | |||||
| 530 | 154724901 | Handle, Towel Bar, White |
|
$ 183.49 | |||||
| 531 | 405537692 | Screw, Door Handle, M4 X 10mm Ph |
|
$ 7.23 | |||||
| 563 | 405538278 | Screw Kit, Door, 3.5x13/40/19 |
|
$ 16.34 | |||||
| 523C | 807194801 | Support, Kickplate |
|
$ 129.41 | |||||
| NI | 405530675 | Plate, Door Handle, (2) |
|
- | |||||
| NI | 405530701 | Screw, Kickplate, 3-5 X 9, White, (2) |
|
- |
