SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Console Parts

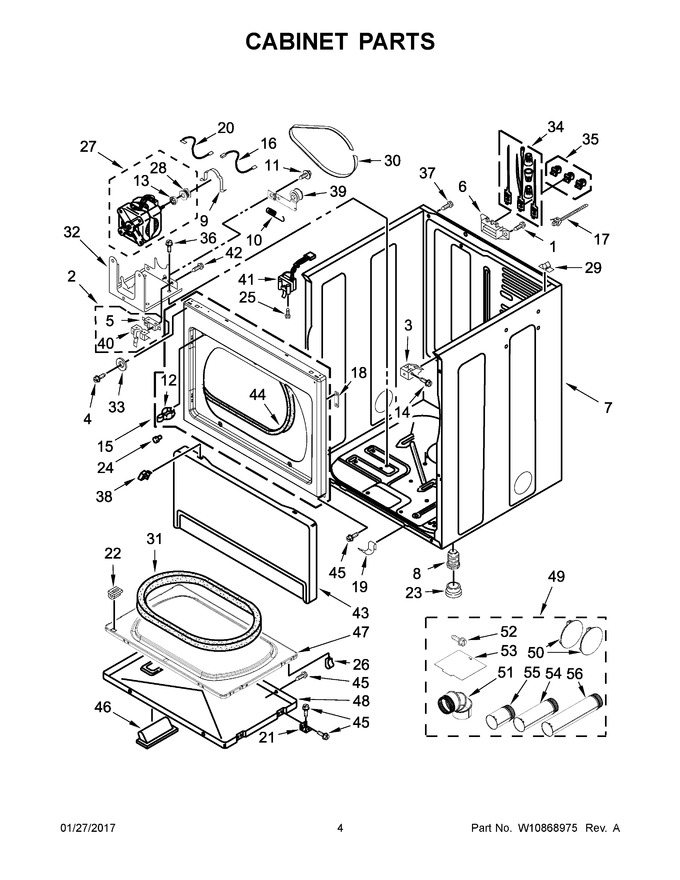

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 2 | 279782 | Switch Assembly (Replaces: 8066134) |
|
Immediately | $ 49.00 | ||||
| 3 | 3391846 | Clip, Front Panel |
|
$ 19.04 | |||||
| 4 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 5 | 279782 | Switch - Belt (Replaces: 3394881) |
|
Immediately | $ 49.00 | ||||
| 6 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 20.72 | |||||
| 7 | W11417441 | Cabinet (white) (Replaces: W10547697) |
|
$ 377.29 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.05 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 22.11 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.22 | |||||
| 12 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 13 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 119.21 | ||||
| 14 | 681615 | Screw (Replaces: 3391915) |
|
$ 12.49 | |||||
| 15 | W10242810 | Panel, Front (white) (Replaces: W10192882) |
|
$ 324.96 | |||||
| 16 | W10167612 | Wire, Belt Switch |
|
$ 11.50 | |||||
| 17 | WPW10155270 | Cable Tie (Replaces: W10155270) |
|
$ 5.55 | |||||
| 18 | W10191265 | Plug, Hinge (white) |
|
$ 39.85 | |||||
| 19 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 6.98 | |||||
| 20 | 3398948 | Wire, Jumper (broken Belt Switch) |
|
$ 55.42 | |||||
| 21 | WPW10279703 | Assembly, Hinge & Pin (silver) (Replaces: W10279703) |
|
$ 65.00 | |||||
| 22 | 279570 | Assembly, Door Catch (Replaces: 3392538) |
|
Immediately | $ 8.00 | ||||
| 23 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 7.04 | |||||
| 24 | 693152 | Bumper |
|
$ 9.86 | |||||
| 25 | WP3395530 | Screw (Replaces: 697773) |
|
$ 6.93 | |||||
| 26 | WPW10131123 | Nut, "u (Replaces: W10131123) |
|
$ 6.94 | |||||
| 27 | W10841144 | Motor (Replaces: W10396031) |
|
Immediately | $ 210.88 | ||||
| 28 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 45.92 | ||||
| 29 | WP345670 | Lock Top (Replaces: 345670) |
|
Immediately | $ 6.93 | ||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 39.60 | ||||
| 31 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 117.54 | |||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 120.23 | |||||
| 33 | W11089212 | Washer (Replaces: 3392186) |
|
$ 8.70 | |||||
| 34 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 90.89 | ||||
| 35 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 42.63 | ||||
| 36 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 37 | W10850756 | Screw (Replaces: W10773242) |
|
$ 6.98 | |||||
| 38 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 39 | WPW10344193 | Pulley-idler Assembly (Replaces: W10344193) |
|
Immediately | $ 75.39 | ||||
| 40 | WP8066120 | Lever Switch (Replaces: 8066120) |
|
Immediately | $ 29.80 | ||||
| 41 | WPW10237959 | Switch, Door (Replaces: 3406109) |
|
Immediately | $ 50.08 | ||||
| 42 | WP98129 | Screw (Replaces: 98129) |
|
$ 6.80 | |||||
| 43 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 214.50 | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 45 | WP488627 | Screw (Replaces: 342055) |
|
$ 6.81 | |||||
| 46 | W11209427 | Handle, Door (Replaces: W10116360) |
|
Immediately | $ 68.18 | ||||
| 47 | 280083 | Door, Rear (Replaces: W10323061) |
|
$ 258.32 | |||||
| 48 | W11663440 | Door, Front (Replaces: W10322546) |
|
$ 233.43 | |||||
| 49 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting), Kit, Exhaust Vent (Replaces: 279818) |
|
Immediately | $ 68.99 | ||||
| 50 | W10470674 | Multivent Plug (white) (Replaces: 697750) |
|
Immediately | $ 68.99 | ||||
| 51 | WPW10416072 | Elbow (Replaces: 49026) |
|
$ 24.14 | |||||
| 52 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 7.01 | ||||
| 53 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 8.06 | |||||
| 54 | WP8563747 | Pipe, Exhaust (medium) (Replaces: 8563747) |
|
$ 82.24 | |||||
| 55 | WPW10331278 | Pipe, Exhaust (short) (Replaces: 8563750) |
|
$ 71.06 | |||||
| 56 | WP8563749 | Pipe, Exhaust (long) (Replaces: 8563749) |
|
$ 79.92 | |||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 |
