SELECT A DIAGRAM

01 - Cover Sheet

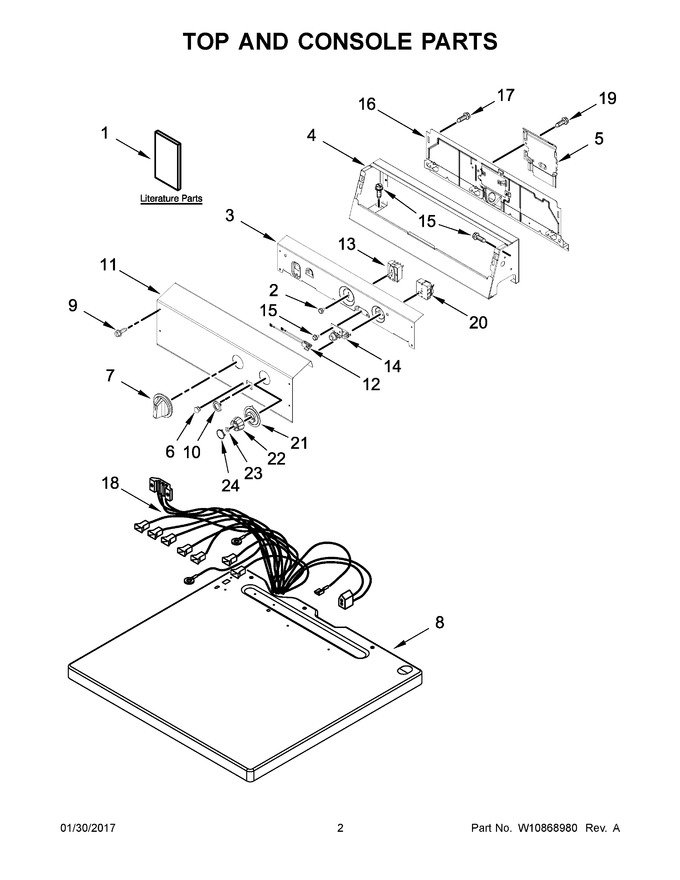

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10867001		Installation Instructions		Appelez-nous	-
2	W10139100		Screw				$ 11.15
3	W10461071		Back Bracket, Non-coin		Appelez-nous	-
4	W11124005		Console   (Replaces: W10461095)				$ 204.36
5	W10819767		Cover, Terminal Block   (Replaces: 8317339)		Appelez-nous	-
6	WPW10133502		Indicator Lights Assembly   (Replaces: W10133502)				$ 11.58
7	W10492415		Knob				$ 17.68
8	W10492414		Top (white)		Appelez-nous	-
9	WPW10131119		Screw   (Replaces: W10386302)				$ 6.26
10	W10510149		Bezel - Pts			Immediately	$ 24.54
11	W11093009		Fascia   (Replaces: W10845277)		Appelez-nous	-
12	W10662107		Lamp, Indicator				$ 23.30
13	WPW10327105		Switch, Cycle Selection   (Replaces: W10327105)				$ 145.49
14	W11097274		Switch, Push To Start   (Replaces: W10424310)				$ 60.71
15	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
16	W10863352		Panel, Rear (console)		Appelez-nous	-
17	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
18	W10153155		Harness, Main		Appelez-nous	-
19	W11808444		Screw   (Replaces: 98139)		Appelez-nous	-
20	WPW10157942		Timer, Dryer   (Replaces: W10157942)				$ 300.75
21	W10492417		Skirt, Dial		Appelez-nous	-
22	W10906062		Knob		Appelez-nous	-
23	W10155650		Nut, Hex				$ 12.03
24	W10492418		Cap, Knob		Appelez-nous	-
1A	W10167625		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
