01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

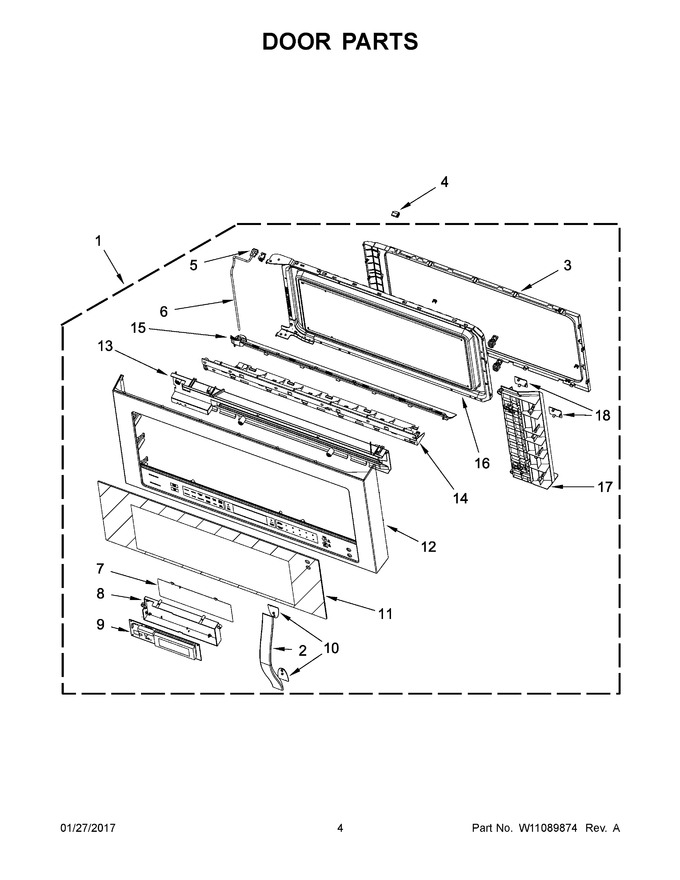

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10860351 | Door, Complete (stainless) |
|
$ 358.11 | |||||
| 2 | W10478162 | Handle (stainless) |
|
- | |||||
| 3 | W10648086 | Frame, Inner |
|
$ 86.25 | |||||
| 4 | W10643448 | Stopper, Door |
|
$ 19.76 | |||||
| 5 | W10770972 | Holder, Door Cable |
|
- | |||||
| 6 | W10508745 | Wire, Door Control Cable |
|
$ 24.86 | |||||
| 7 | W10540298 | Plate, Ui Insulation |
|
- | |||||
| 8 | W10770970 | Holder, Ui |
|
- | |||||
| 9 | W10834084 | Control |
|
- | |||||
| 10 | W10478213 | Cushion, Handle |
|
- | |||||
| 11 | W10478675 | Glass, Outer (stainless) |
|
- | |||||
| 12 | W10579828 | Assembly, Door Frame (stainless) |
|
$ 319.90 | |||||
| 13 | W10617743 | Cover, Ui |
|
- | |||||
| 14 | W10476546 | Bracket, Door |
|
- | |||||
| 15 | W10476550 | Frame, Back Decorating (black) |
|
- | |||||
| 16 | W10568846 | Body, Door (with Glass) |
|
$ 215.51 | |||||
| 17 | W11699920 | Bracket, Outer Door (black) (Replaces: W10734943) |
|
$ 73.87 | |||||
| 18 | W10478657 | Cover, Screw (black) |
|
Immediately | $ 19.25 |
