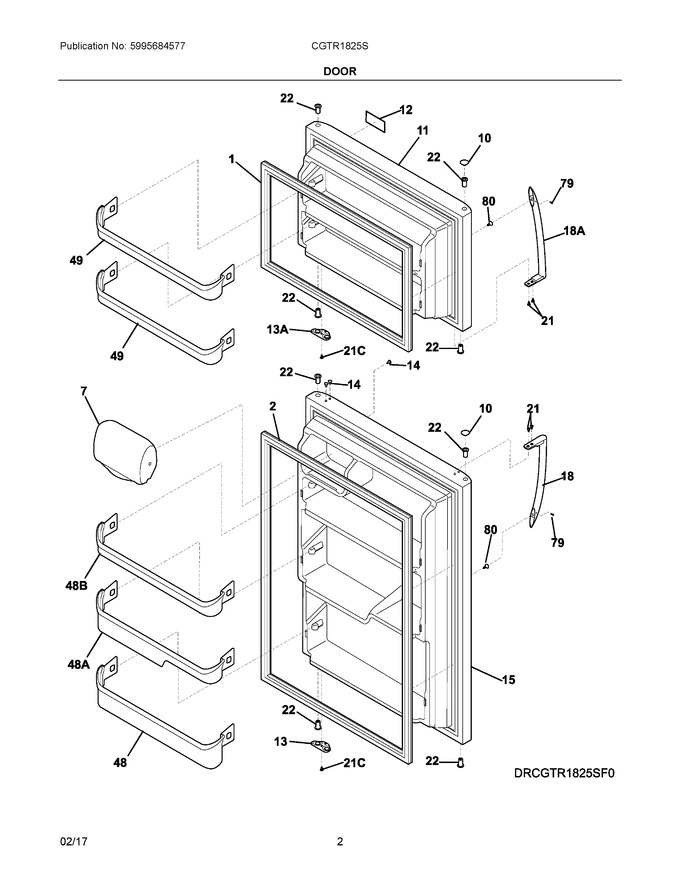

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193218		Gasket-frzr Door, Gray, Magnetic				$ 188.10
2	242193219		Gasket-refr Door, Gray, Magnetic			Immediately	$ 188.10
7	240337712		Door-dairy			Immediately	$ 36.41
10	240381307		Plug-button, Gray, Hinge Brg Hole, (2)			Immediately	$ 16.69
11	240410208		Door-frzr, Stainless, Complete Assy				$ 534.38
12	242015201		Label-nameplate			Immediately	$ 6.90
13	240312424		Door Stop, Gray, Ref   (Replaces: 240312420)				$ 14.41
14	240494007		Plug-button, Gray			Immediately	$ 15.92
15	242178101		Door-refr, Stainless, Complete Assy   (Replaces: 240410311)				$ 609.53
18	241977901		Handle-door, Stainless, Refr-rh/frzr-lh   (Replaces: 241977501)				$ 336.65
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507147		Bearing-hinge, Black, (8)			Immediately	$ 7.59
48	240338101		Bin-door			Immediately	$ 52.37
49	240495805		Bin-door, Pseudo, Frzr				$ 50.94
79	218755405		Screw-set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
13A	240312419		Door Stop, Gray, Frzr				$ 16.30
18A	241977901		Handle-door, Stainless, Refr-lh/frzr-rh   (Replaces: 241977502)				$ 336.65
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
48A	240337901		Bin-door			Immediately	$ 52.13
48B	240338001		Bin-door			Immediately	$ 34.96
NIA	241601001		Wrench, Allen		Appelez-nous	-
