SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven, Cabinet

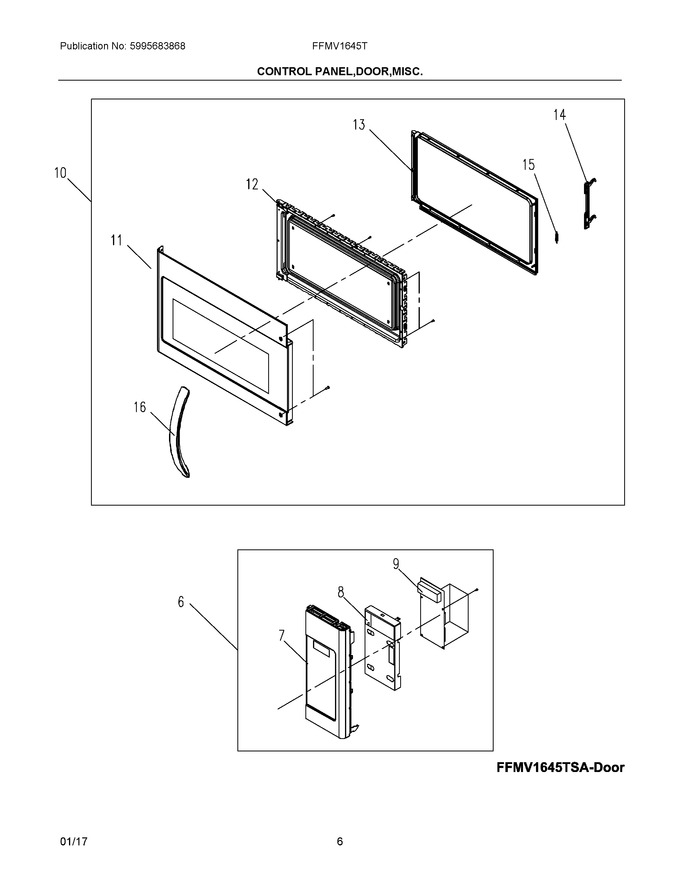

03 - Control Panel, Door, Misc


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5304525304		Control Assembly, Black   (Replaces: 5304509419)				$ 681.87
7	5304509420		Control Panel, W/membrane, Black				$ 235.55
8	5304509421		Panel, Control Mount, Bracket		Appelez-nous	-
9	5304525309		Pc Board, Main, Control/power   (Replaces: 5304509422)				$ 349.18
10	5304509423		Door Assembly, Stainless				$ 764.69
11	5304509429		Panel, Outer Door, Stainless				$ 411.35
12	5304509430		Panel, Inner Door, Black				$ 172.05
13	5304509431		Frame, Choke Cover, Inner Door				$ 39.76
14	5304525298		Latch, Door   (Replaces: 5304509432)			Immediately	$ 10.85
15	5304521953		Spring, Door Latch   (Replaces: 5304509433)				$ 7.23
16	5304509434		Handle, Door, Stainless				$ 175.24

    View Diagram in Separate Window       Print Part List
