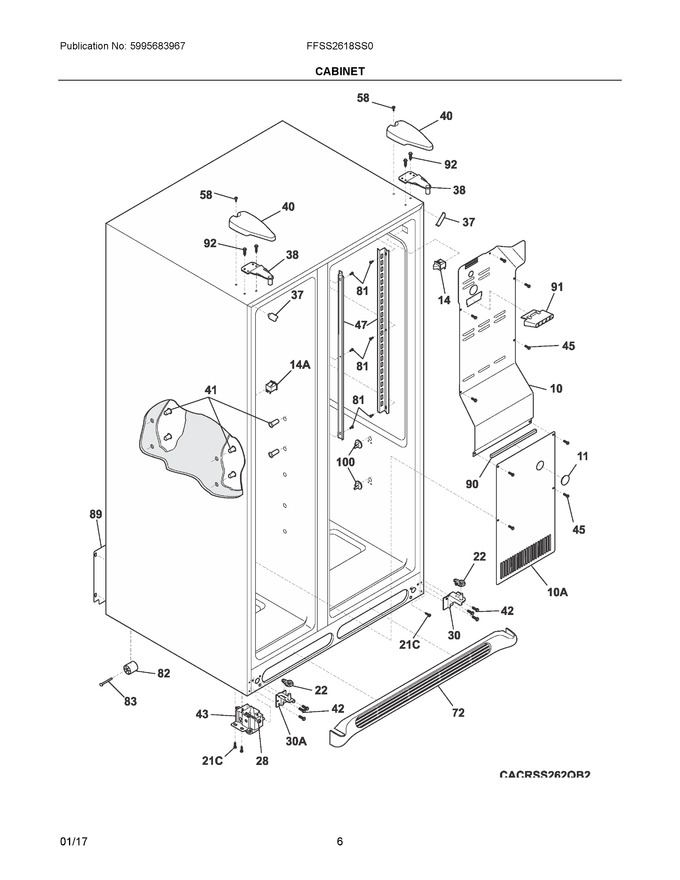

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 240435912 | Cover-air Duct |
|
$ 123.23 | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 14 | 240505801 | Switch, Light/lamp |
|
$ 66.63 | |||||
| 22 | 241856501 | Plate-door Closer, Black (Replaces: 241856502) |
|
$ 22.73 | |||||
| 28 | 5304499445 | Bolt-roller Adj, Hex Washer Head, 1/4-20 X 4.020, (2), Special (Replaces: 240335502) |
|
Immediately | $ 31.33 | ||||
| 30 | 242034601 | Bracket-lower Hinge |
|
$ 59.11 | |||||
| 37 | 242161206 | Trim-cabinet Corner, Gray, (2) |
|
$ 10.62 | |||||
| 38 | 240327207 | Bracket-upper Hinge |
|
Immediately | $ 57.50 | ||||
| 40 | 240327012 | Cover-hinge, Gray |
|
$ 62.99 | |||||
| 41 | 241550801 | Grommet-shelf Mtg, 1.40" Long |
|
$ 63.70 | |||||
| 42 | 240578902 | Screw, Hex Head, 1/4-20 X 5/8 |
|
Immediately | $ 14.18 | ||||
| 43 | 5304499445 | Roller Assy, Front, (2) (Replaces: 240335006) |
|
Immediately | $ 31.33 | ||||
| 45 | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| 47 | 218659502 | Channel-shelf Mtg, Side, (2) |
|
- | |||||
| 58 | 218781101 | Screw, Pan Head, 8-18 X 0.625 |
|
$ 15.60 | |||||
| 72 | 241969407 | Grille/kickplate, Grey |
|
- | |||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 82 | 240335202 | Roller, Compressor Base, Rear |
|
$ 21.27 | |||||
| 83 | 5304455655 | Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin |
|
Immediately | $ 35.34 | ||||
| 89 | 5304520905 | Cover-access, W/label (Replaces: 241733902) |
|
Immediately | $ 74.03 | ||||
| 90 | 218249808 | Seal-coil Cover |
|
- | |||||
| 91 | 240380101 | Duct-ice Maker |
|
$ 75.08 | |||||
| 92 | 241710601 | Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg |
|
$ 13.46 | |||||
| 100 | 241993101 | Support-crisper Cvr |
|
Immediately | $ 5.62 | ||||
| 10A | 241719711 | Cover-evap Coil, Lower |
|
$ 105.80 | |||||
| 14A | 241547902 | Switch-light/lamp, Frzr Door (Replaces: 241547901) |
|
Immediately | $ 23.25 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 30A | 242034604 | Bracket-lower Hinge |
|
$ 53.34 | |||||
| NI | 240396802 | Clamp, Tube/wiring, Nylon, Black/natural |
|
- | |||||
| NI | 240494001 | Plug-button, White, Cab Liner Holes |
|
Immediately | $ 18.20 | ||||
| NIA | 241550701 | Grommet-shelf Mtg, .96" Long |
|
$ 18.20 | |||||
| NIA | 241993001 | Support-crisper Cvr |
|
Immediately | $ 19.23 |
