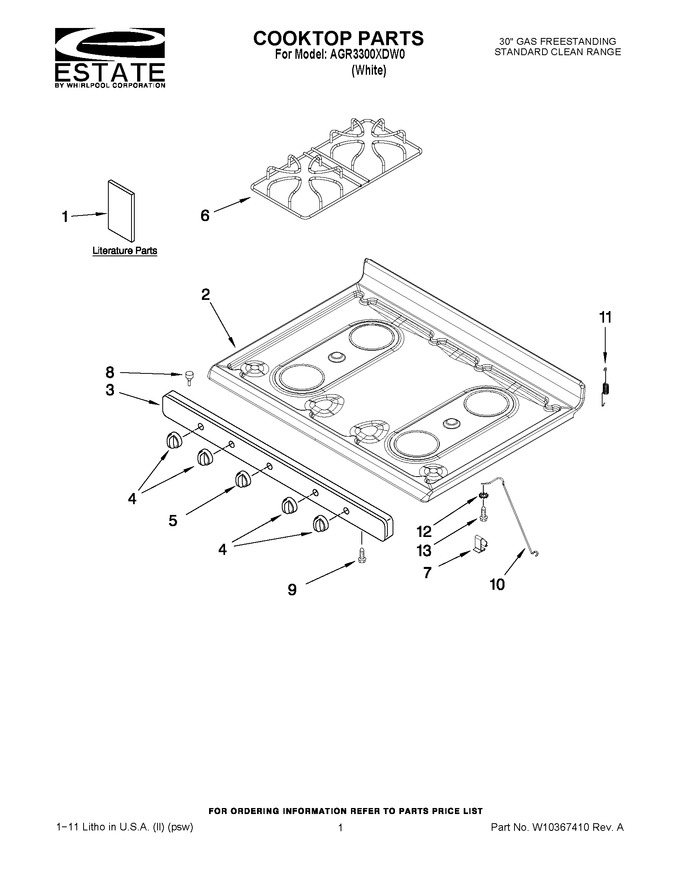

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10325493 | Instructions Installation |
|
- | |||||
| 2 | WPW10141521 | Cooktop (Replaces: W10141521) |
|
$ 311.38 | |||||
| 3 | W10323612 | Panel, Manifold |
|
- | |||||
| 4 | WP98006102 | Knob, Burner (Replaces: 98006102) |
|
$ 17.53 | |||||
| 5 | WP98008321 | Knob, Thermostat (Replaces: 98008321) |
|
$ 18.06 | |||||
| 6 | WPW10180089 | Grate, Burner (Replaces: W10180089) |
|
$ 42.40 | |||||
| 7 | W11229684 | Clip, Cooktop (Replaces: 98004722) |
|
$ 10.67 | |||||
| 8 | 98004723 | Bumper, Cooktop |
|
- | |||||
| 9 | W11233072 | Screw (Replaces: 98005000) |
|
Immediately | $ 12.62 | ||||
| 10 | W10156802 | Rod, Supporting (right) |
|
- | |||||
| 11 | W10132429 | Spring, Cooktop |
|
- | |||||
| 12 | 98016879 | Washer, Lock |
|
- | |||||
| 13 | WP486754 | Screw (Replaces: 98014402) |
|
$ 6.75 | |||||
| 10A | W10143497 | Rod, Supporting (left) |
|
- | |||||
| 1A | W10138585 | Installation Instr (template) |
|
- | |||||
| 1B | W10330186 | Guide, Use & Care |
|
- | |||||
| 1C | 98007130 | Tips, Safe Cooking (engligh) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- |
