SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

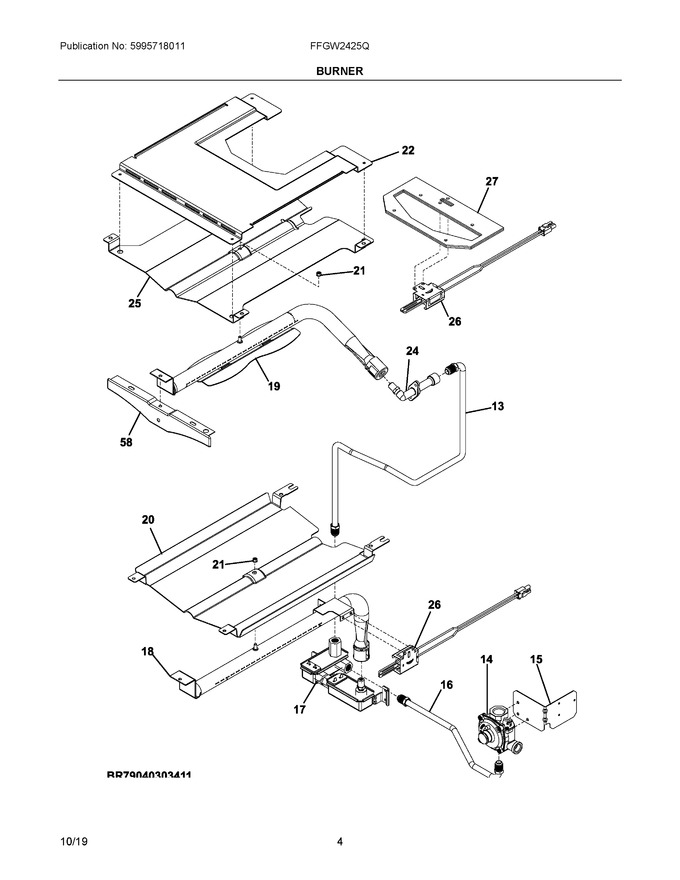

03 - Burner


04 - Body


05 - Door/drawer


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	807181001		Tube, Valve To Mixer		Appelez-nous	-
14	A13097101		Regulator, Pressure   (Replaces: 316416706)				$ 124.13
15	5304498069		Bracket, Regulator Mtg.		Appelez-nous	-
16	807181101		Tube, Regulator To, Valve		Appelez-nous	-
17	316031503		Valve, Safety				$ 233.15
18	5304502520		Burner, Bake				$ 173.66
19	807246302		Burner, Broil		Appelez-nous	-
20	139076601		Baffle, Oven Burner		Appelez-nous	-
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	5304504565		Shield, Broil, Top Cavity		Appelez-nous	-
24	316409707		Elbow, Mixer		Appelez-nous	-
25	316401301		Baffle, Broil Burner				$ 173.57
26	139013700		Ignitor, Burner			Immediately	$ 171.52
27	5304508513		Bracket, Support, Broil Stiffener		Appelez-nous	-
58	318123600		Shield, Broiler		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5304504261		Harness, Ignitor Jumper		Appelez-nous	-
NIA	316260800		Screw-shoulder, W/shoulder, #8-18 X 1/2				$ 13.46
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NIB	318165800		Spacer, Glass, Foam				$ 17.72
