SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven,cabinet

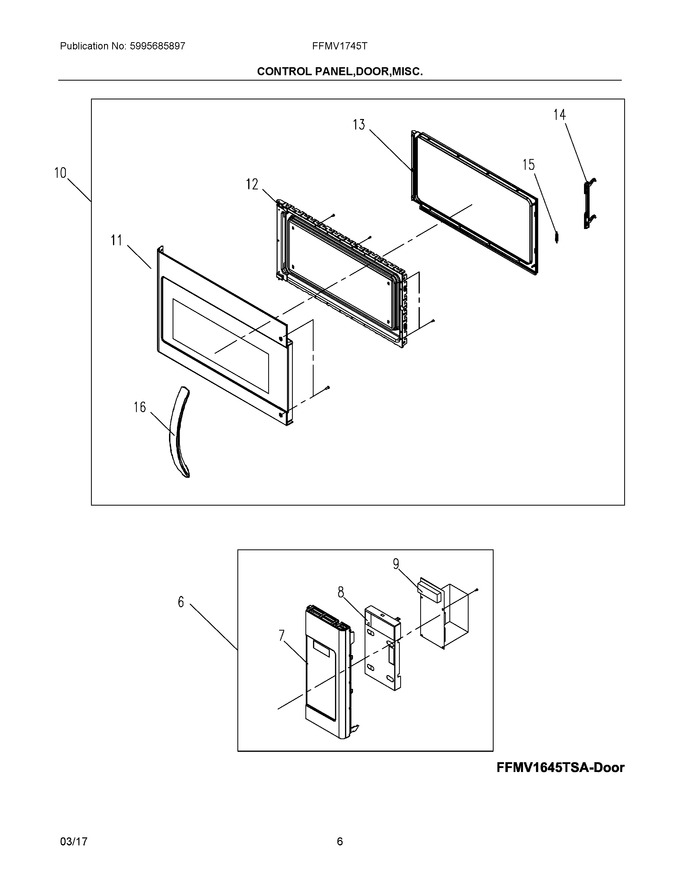

03 - Control Panel,door,misc


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5304509616		Control Assembly, Black		Appelez-nous	-
7	5304509629		Control Panel, W/membrane, Black		Appelez-nous	-
8	5304509421		Panel, Control Mount, Bracket		Appelez-nous	-
9	5304509620		Pc Board, Main, Control/power		Appelez-nous	-
10	5304509593		Door Assembly, Black				$ 759.80
11	5304509594		Panel, Outer Door, Black				$ 312.60
12	5304509430		Panel, Inner Door, Black				$ 172.05
13	5304509431		Frame, Choke Cover, Inner Door				$ 39.76
14	5304525298		Latch, Door   (Replaces: 5304509432)			Immediately	$ 10.85
15	5304521953		Spring, Door Latch   (Replaces: 5304509433)				$ 7.23
16	5304509581		Handle, Door, Black				$ 167.38

    View Diagram in Separate Window       Print Part List
