SELECT A DIAGRAM

01 - Cover Sheet

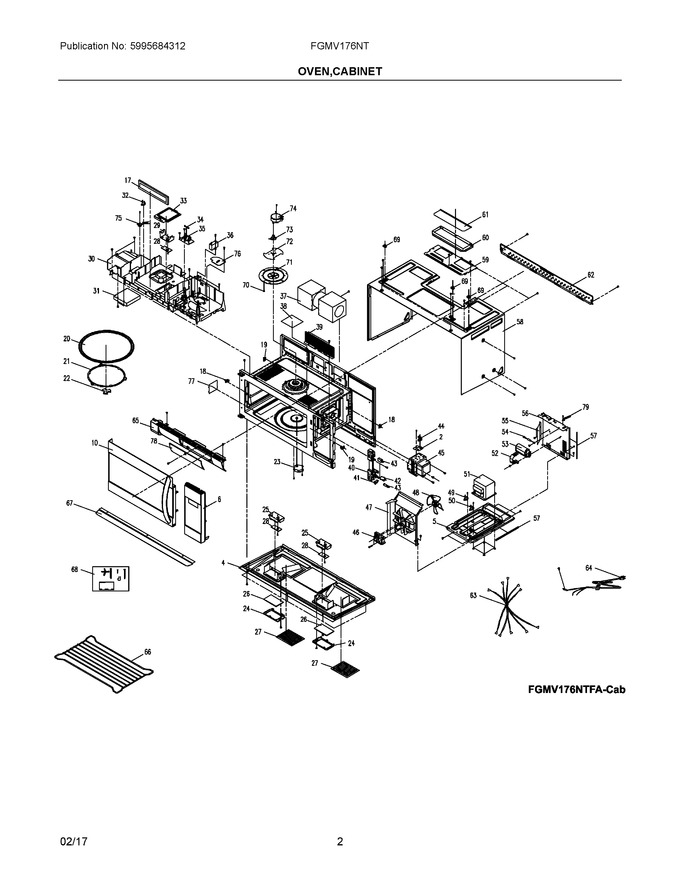

02 - Oven,cabinet


02 - Oven, Cabinet


03 - Control Panel, Door, Misc


03 - Control Panel,door,misc


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304509333		Bracket, Thermostat		Appelez-nous	-
4	5304509660		Base, Unit Chassis				$ 199.16
5	5304509418		Base, Transformer		Appelez-nous	-
6	5304509661		Control Assembly, Black				$ 757.15
10	5304509638		Door Assembly, Stainless				$ 617.14
17	5304509627		Filter, Air, Charcoal		Appelez-nous	-
18	5304509642		Support A, Shelf			Immediately	$ 14.55
19	5304509643		Support B, Shelf				$ 13.83
20	5304509621		Tray, Turntable				$ 154.61
21	5304509438		Support, Turntable Ring				$ 52.20
22	5304509622		Coupler, Turntable/motor				$ 21.02
23	5304509440		Motor, Turntable				$ 118.13
24	5304509441		Frame, Lens Holder		Appelez-nous	-
25	5304509442		Cover, Lamp				$ 59.09
26	5304509443		Lens, Cooktop Lamp, Glass		Appelez-nous	-
27	5304509444		Filter, Grease, Washable			Immediately	$ 83.17
28	5304509445		Lamp Assembly, Led			Immediately	$ 51.55
29	5304509446		Bracket, Led				$ 22.08
30	5304509644		Duct, Air		Appelez-nous	-
31	5304509448		Vent, Air Outlet		Appelez-nous	-
32	5304509449		Thermostat, 110/0 *v				$ 21.69
33	5304509450		Cover, Lamp, Oven Cavity				$ 18.62
34	5304509451		Fuse			Immediately	$ 13.01
35	5304509452		Filter, Noise, Electronic			Immediately	$ 75.74
36	5304509453		Capacitor, Start				$ 141.75
37	5304509624		Motor, Vent				$ 425.32
38	5304509455		Tape, Lamp		Appelez-nous	-
39	5304509456		Cover, Control Shield, Right				$ 19.52
40	5304509457		Latch Hook			Immediately	$ 43.79
41	5304509458		Lever, Switch			Immediately	$ 10.17
42	5304509459		Switch, Monitor			Immediately	$ 30.84
43	5304509460		Switch, Interlock			Immediately	$ 45.27
44	5304509469		Thermostat, 160/95 *v			Immediately	$ 21.78
45	5304509470		Magnetron, High Voltage			Immediately	$ 436.17
46	5304509471		Motor, Cooling Fan			Immediately	$ 150.42
47	5304509472		Duct, Cooling Fan				$ 79.52
48	5304509473		Fan Blade, Cooling Fan				$ 15.47
49	5304509474		Thermostat, Cutout, Transformer			Immediately	$ 20.97
50	5304509475		Thermostat, Cutout, Vent Motor			Immediately	$ 19.52
51	5304509476		Transformer, High Voltage				$ 440.36
52	5304509477		Retainer, Capacitor Strap		Appelez-nous	-
53	5304509478		Capacitor, High Voltage			Immediately	$ 153.84
54	5304509479		Diode, High Voltage				$ 28.30
55	5304509480		Vent, Air, Magnetron				$ 57.65
56	5304509481		Plate, Air Guide		Appelez-nous	-
57	5304509482		Cushion, Foam Pad, Transformer		Appelez-nous	-
58	5304509483		Cabinet, Outer Casing, Black				$ 374.22
59	5304509484		Cover, Vent Motor				$ 140.76
60	5304509485		Adapter, Exhaust, Damper Frame			Immediately	$ 25.32
61	5304509486		Damper, Door, Exhaust Adapter			Immediately	$ 27.73
62	5304509487		Plate, Wall Mounting, Rear			Immediately	$ 59.63
63	5304509645		Wiring Harness, Main		Appelez-nous	-
64	5304509489		Power Cord, Electric		Appelez-nous	-
65	5304509646		Vent, Stainless, Front			Immediately	$ 135.33
66	5304509647		Shelf, Wire				$ 151.09
67	5304509648		Shield, Heat, Base Plate				$ 94.71
68	5304503192		Mounting Kit, With Templates   (Replaces: 5304492620)				$ 114.26
69	5304509436		Mounting Nut Kit			Immediately	$ 14.71
70	5304509625		Pin, Mounting, Stirrer Cover				$ 3.62
71	5304509626		Cover, Stirrer Fan				$ 49.89
72	5304509649		Fan Blade, Stirrer				$ 15.90
73	5304509650		Shaft, Stirrer Fan				$ 19.52
74	5304509651		Motor, Stirrer Fan				$ 145.26
75	5304509652		Sensor, Humidity				$ 305.46
76	5304509628		Baffle, Air Duct		Appelez-nous	-
77	5304509435		Cover, Waveguide				$ 13.74
78	5304509653		Door, Vent Grille		Appelez-nous	-
79	5304509491		Spacer		Appelez-nous	-
NI	5304472496		Screw Kit, Black				$ 71.56

    View Diagram in Separate Window       Print Part List
