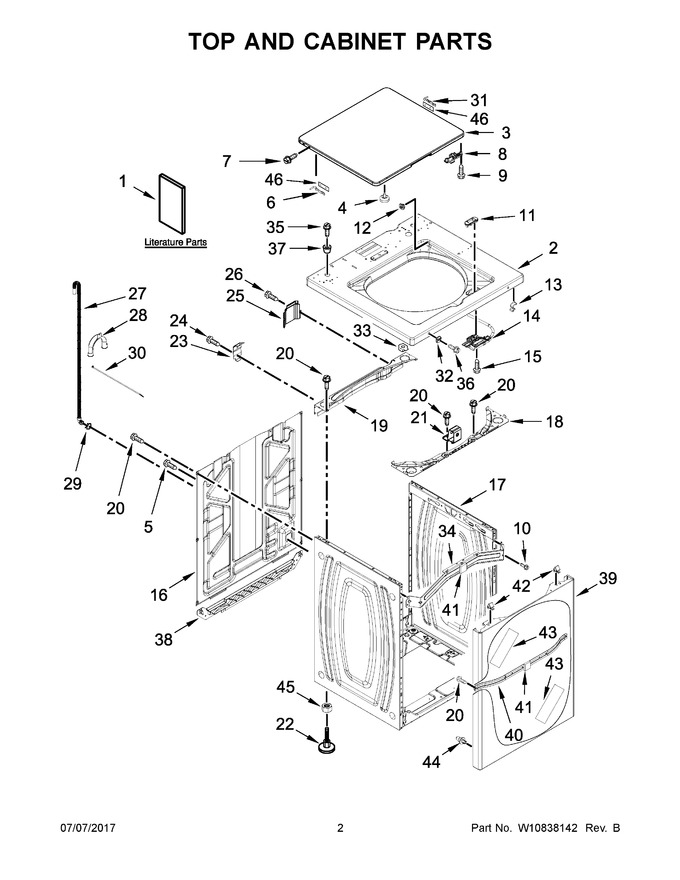

02 - Top And Cabinet Parts


03 - Controls And Water Inlet Parts


04 - Meter Case Parts


05 - Basket And Tub Parts


06 - Gearcase, Motor And Pump Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10837721		Installation Instructions		Appelez-nous	-
2	W11349834		Top (white)   (Replaces: W10845292)				$ 522.90
3	W10839384		Assembly, Lid And Bumper (white)   (Replaces: W10461179)				$ 349.53
4	W11252488		Bumper, Lid   (Replaces: W10525268)				$ 5.90
5	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.07
6	WP91770		Hinge, Lid (left Hand)   (Replaces: 91770)				$ 24.71
7	WPW10119828		Screw   (Replaces: W10119872)			Immediately	$ 6.47
8	WPW10240513		Strike, Lid Lock (white)   (Replaces: W10240513)			Immediately	$ 35.61
9	WPW10273971		Screw   (Replaces: W10273971)			Immediately	$ 6.47
10	WP489442		Screw   (Replaces: W10015090)			Immediately	$ 9.85
11	WPW10392041		Bezel, Lid Lock (white)   (Replaces: W10392041)			Immediately	$ 6.86
12	WP21258		Bearing, Lid Hinge   (Replaces: 21258)			Immediately	$ 6.87
13	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
14	WPW10482836		Latch, Lid Lock Assembly   (Replaces: W10482836)			Immediately	$ 105.06
15	W11679611		Screw   (Replaces: W10588613)				$ 6.17
16	W11486091		Panel, Rear   (Replaces: W10250884)			Immediately	$ 280.90
17	W10845574		Cabinet (white)				$ 606.31
18	W11695476		Brace, Cabinet Top Front (white)   (Replaces: W10724131)				$ 68.39
19	W11712680		Brace, Cabinet Top - Rear   (Replaces: W11089573)			Immediately	$ 89.04
20	W11685943		Screw   (Replaces: W10660565)				$ 12.83
21	W10461182		Lock, Top				$ 11.46
22	W10862938		Foot, Leveling   (Replaces: W10245373)			Immediately	$ 11.33
23	W10461176		Hinge, Top				$ 14.95
24	WP489128		Screw   (Replaces: W10142728)				$ 9.79
25	W10461180		Cover, Harness		Appelez-nous	-
26	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 6.98
27	W11244231		Hose, Outer Drain Assembly   (Replaces: W10221546)			Immediately	$ 28.86
28	WPW10280024		U-bend, Drain Hose   (Replaces: W10280024)				$ 71.58
29	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
30	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 7.11
31	WP54583		Hinge, Lid (right Hand)   (Replaces: 54583)				$ 26.60
32	W10461181		Bushing-top, Screw				$ 16.13
33	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
34	W10882494		Bracket, Front Top		Appelez-nous	-
35	3353994		Bolt		Appelez-nous	-
36	W11170603		Screw   (Replaces: W10486616)		Appelez-nous	-
37	356674		Cone, Wedge				$ 33.19
38	W10850379		Bracket, Base		Appelez-nous	-
39	W11704945		Panel, Front (white)   (Replaces: W10811028)				$ 305.47
40	W10866521		Bracket, Front Panel				$ 38.32
41	WP8283273		Damper, Brace   (Replaces: 8283273)				$ 24.35
42	W11376161		Lock, Top Front   (Replaces: W10862638)			Immediately	$ 6.61
43	W11096159		Damper, Sound   (Replaces: W10414221)				$ 24.62
44	W11590580		Rivet   (Replaces: W10866523)				$ 8.06
45	WP3359452		Nut, Hex   (Replaces: 3359452)			Immediately	$ 6.47
46	WP21097		Pad, Lid Hinge   (Replaces: 21097)				$ 7.02
1A	W10838072		Tech Sheet		Appelez-nous	-
