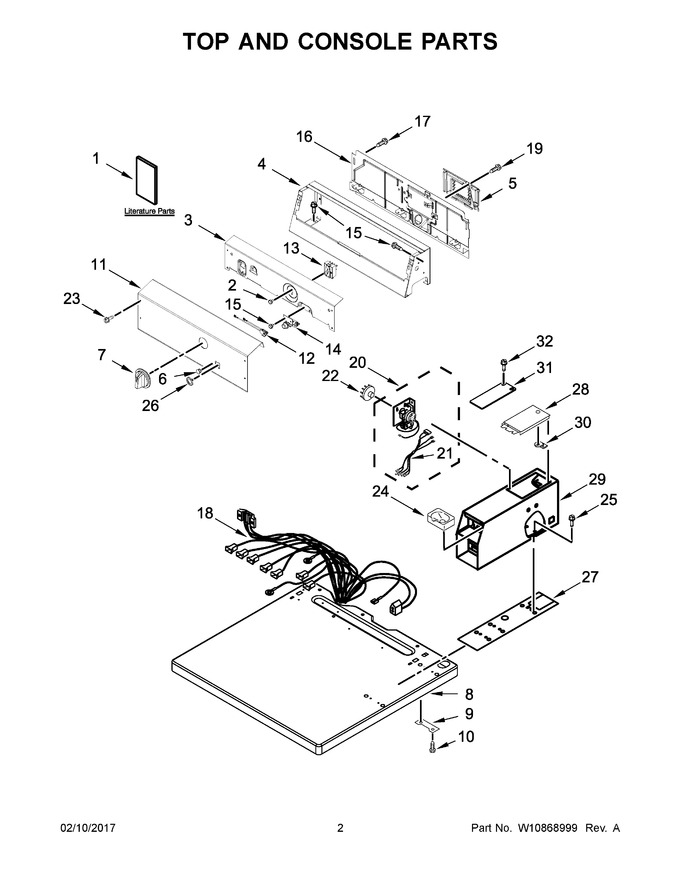

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10868655 | Installation Instructions |
|
- | |||||
| 2 | W10139100 | Screw |
|
$ 11.15 | |||||
| 3 | W10461070 | Bracket Control |
|
$ 127.69 | |||||
| 4 | W10461094 | Console |
|
$ 159.97 | |||||
| 5 | W10819767 | Cover, Terminal Block (Replaces: 8317339) |
|
- | |||||
| 6 | WPW10133502 | Indicator Lights Assembly (Replaces: W10133502) |
|
$ 11.58 | |||||
| 7 | W11643382 | Knob (Replaces: W10133507) |
|
Immediately | $ 23.64 | ||||
| 8 | WPW10136707 | Top (white) (Replaces: W10136707) |
|
$ 320.56 | |||||
| 9 | 3347825 | Plate, Mounting |
|
- | |||||
| 10 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 11 | W11091962 | Fascia (Replaces: W10845278) |
|
- | |||||
| 12 | W10662107 | Lamp, Indicator |
|
$ 23.30 | |||||
| 13 | WPW10327105 | Switch, Cycle Selection (Replaces: W10327105) |
|
$ 145.49 | |||||
| 14 | W11097274 | Switch, Push To Start (Replaces: W10424310) |
|
$ 60.71 | |||||
| 15 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.04 | ||||
| 16 | W11089934 | Panel, Rear (console) (Replaces: W10863354) |
|
$ 256.84 | |||||
| 17 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 18 | W10153108 | Harness, Main |
|
- | |||||
| 19 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| 20 | WPW10135260 | Timer & Harness Assembly (Replaces: W10135260) |
|
$ 357.80 | |||||
| 21 | W10177793 | Harness, Timer |
|
$ 67.09 | |||||
| 22 | WP3387974 | Timing Cam, 3-pin (60 Minutes) (Replaces: 3387974) |
|
$ 7.49 | |||||
| 23 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 6.26 | |||||
| 24 | W10133509 | Funnel, Coin |
|
$ 74.49 | |||||
| 25 | W11715721 | Bolt (Replaces: 3349065) |
|
$ 6.41 | |||||
| 26 | W10510149 | Bezel - Pts |
|
Immediately | $ 24.54 | ||||
| 27 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 27.99 | |||||
| 28 | W11283272 | Assembly, Service Door (Replaces: 3351136) |
|
$ 95.29 | |||||
| 29 | WPW10529172 | Meter Case (Replaces: W10529172) |
|
$ 345.34 | |||||
| 30 | W11401086 | Cam, Commercial Lock (Replaces: W10156125) |
|
$ 6.17 | |||||
| 31 | WPW10153513 | Extension (Replaces: W10153513) |
|
$ 74.57 | |||||
| 32 | WP356418 | Screw (Replaces: 96435) |
|
$ 7.13 | |||||
| 1A | W10167622 | Wiring Diagram |
|
- | |||||
| 22A | 51-161-6 | Timing Cam, 6-pin (30 Minutes) (Replaces: 343777) |
|
$ 31.07 |
