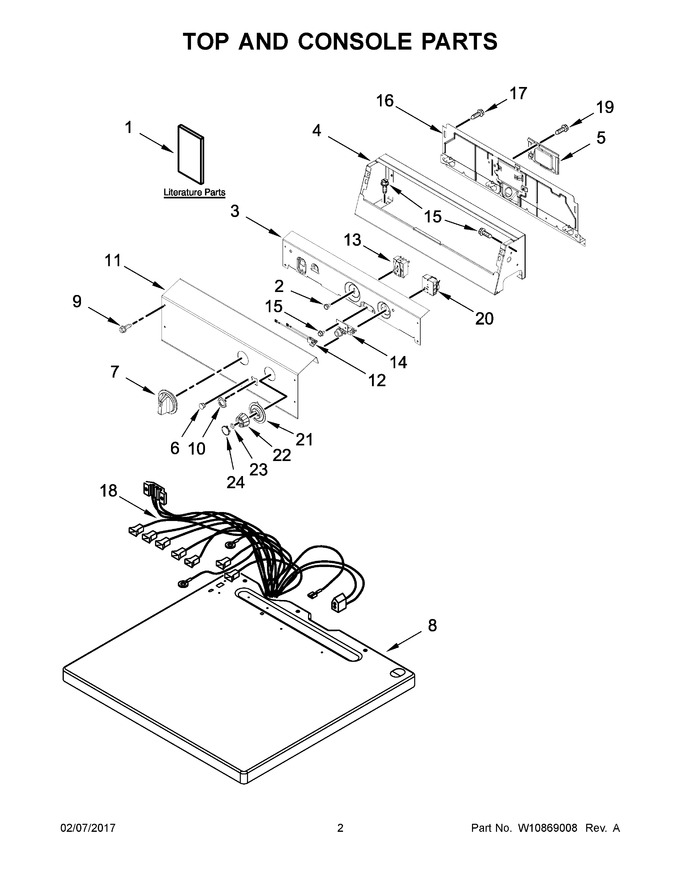

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10868655 | Installation Instructions |
|
- | |||||
| 2 | W10139100 | Screw |
|
$ 11.15 | |||||
| 3 | W10461071 | Back Bracket, Non-coin |
|
- | |||||
| 4 | W11124005 | Console (Replaces: W10461095) |
|
$ 204.36 | |||||
| 5 | W10819767 | Cover, Terminal Block (Replaces: 8317339) |
|
- | |||||
| 6 | WPW10133502 | Indicator Lights Assembly (Replaces: W10133502) |
|
$ 11.58 | |||||
| 7 | W11643382 | Knob (Replaces: W10133507) |
|
Immediately | $ 23.64 | ||||
| 8 | WPW10136704 | Top (white) (Replaces: W10136704) |
|
$ 234.39 | |||||
| 9 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 6.26 | |||||
| 10 | W10510149 | Bezel - Pts |
|
Immediately | $ 24.54 | ||||
| 11 | W11091961 | Fascia (Replaces: W10845280) |
|
- | |||||
| 12 | W10662107 | Lamp, Indicator |
|
$ 23.30 | |||||
| 13 | WPW10327105 | Switch, Cycle Selection (Replaces: W10327105) |
|
$ 145.49 | |||||
| 14 | W11097274 | Switch, Push To Start (Replaces: W10424310) |
|
$ 60.71 | |||||
| 15 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.04 | ||||
| 16 | W10863352 | Panel, Rear (console) |
|
- | |||||
| 17 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 18 | W10153155 | Harness, Main |
|
- | |||||
| 19 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| 20 | WPW10157942 | Timer, Dryer (Replaces: W10157942) |
|
$ 300.75 | |||||
| 21 | W10133506 | Skirt, Dial |
|
$ 17.06 | |||||
| 22 | W10906058 | Knob |
|
- | |||||
| 23 | W10155650 | Nut, Hex |
|
$ 12.03 | |||||
| 24 | WPW10133501 | Cap, Knob (Replaces: W10133501) |
|
$ 54.76 | |||||
| 1A | W10167625 | Wiring Diagram |
|
- |
