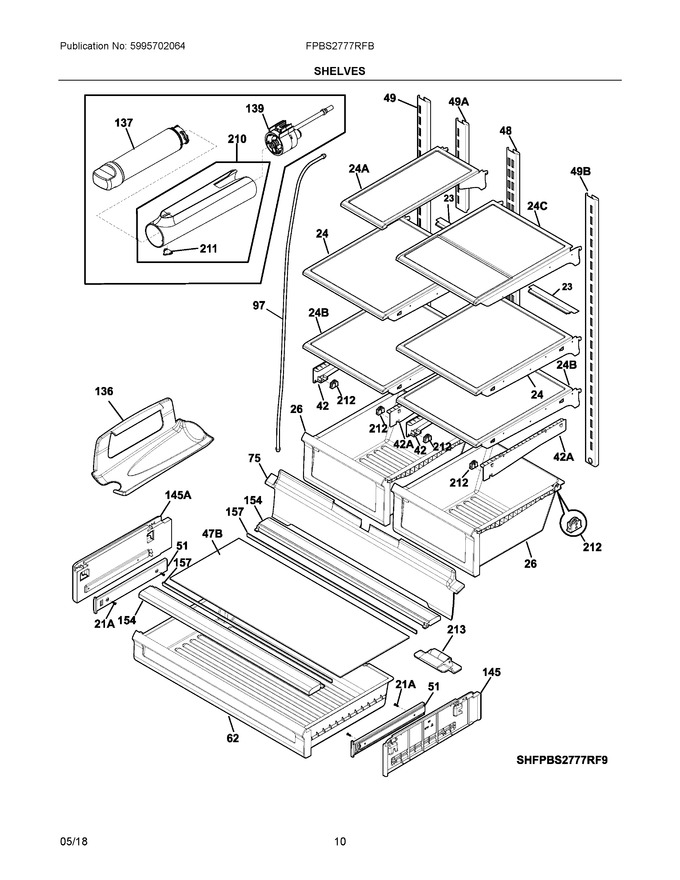

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 23 | 5304501541 | Gasket, Shelf, Rear, Air Flow |
|
$ 16.30 | |||||
| 24 | 242068717 | Shelf-"spill-safe", Cantilever, Sliding (Replaces: 242068701) |
|
$ 182.01 | |||||
| 26 | 241801802 | Pan-crisper, (2) (Replaces: 241801812) |
|
Immediately | $ 215.79 | ||||
| 42 | 242067901 | Support, Crspr Pan Rolle |
|
$ 22.68 | |||||
| 48 | 242122101 | Channel-shelf Mtg, Center |
|
$ 80.09 | |||||
| 49 | 242122202 | Channel-shelf Mtg, Side, Lh |
|
$ 67.33 | |||||
| 51 | 242197901 | Slide, Deli, (2) |
|
$ 133.96 | |||||
| 62 | 242096812 | Pan-deli |
|
$ 241.55 | |||||
| 75 | 242072704 | Shield-light, Refr |
|
$ 117.66 | |||||
| 97 | 242220119 | Tube-water, 5/16-97.5", Natural, Filter Base To, Secondary Valve |
|
Immediately | $ 30.47 | ||||
| 136 | 241657701 | Dispenser-can, White |
|
$ 57.41 | |||||
| 137 | 807946701 | Filter Assembly, Puresource U-ii, W/cap |
|
- | |||||
| 139 | 5304522623 | Manifold, Water Filter, 93.5", W/brown Tube, Filter Base To, Primary Valve (Replaces: 807931801) |
|
Immediately | $ 64.53 | ||||
| 145 | 242200003 | Support, Deli Slide Rail, Rh |
|
$ 78.11 | |||||
| 154 | 242082401 | Support |
|
$ 76.22 | |||||
| 157 | 241872201 | Beam-crisper Cover |
|
$ 53.85 | |||||
| 210 | 5303918723 | Housing, Water Filter, W/plug & Pad |
|
Immediately | $ 26.23 | ||||
| 211 | 807932201 | Plug, Filter Housing |
|
- | |||||
| 212 | 242236801 | Roller Assembly, Crisper Pan |
|
Immediately | $ 21.99 | ||||
| 213 | 242010901 | Roller Assy, Deli Pan |
|
$ 49.62 | |||||
| 145A | 242200004 | Support, Deli Slide Rail, Lh |
|
$ 82.66 | |||||
| 21A | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 24A | 242200501 | Shelf-"spill-safe", Cantilever, 1/4 Width, Flip Up |
|
$ 197.17 | |||||
| 24B | 242068703 | Shelf-"spill-safe", Fixed |
|
$ 221.45 | |||||
| 24C | 242235501 | Shelf-"spill-safe", Cantilever, Half Width, Slide Under |
|
$ 237.37 | |||||
| 42A | 242067801 | Support, Crspr Pan Rolle |
|
$ 52.47 | |||||
| 47B | 242082303 | Glass, Deli Cover |
|
$ 108.45 | |||||
| 49A | 5304531311 | Channel-shelf Mtg, Center, Icemaker Shelf (Replaces: 242122001) |
|
- | |||||
| 49B | 242122301 | Channel-shelf Mtg, Side, Rh |
|
$ 77.97 | |||||
| NI | 5304501219 | Energy Guide |
|
- | |||||
| NI | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| NI | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| NIA | 241695904 | Screw |
|
$ 14.41 | |||||
| NIA | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| NIA | A13402902 | Bypass Assembly, No Filter, Optional Part (Replaces: 807946702) |
|
Immediately | $ 104.38 | ||||
| NIA | 242039702 | Screw, Shoulder, #10-16, (2) |
|
$ 4.26 | |||||
| NIA | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| NIA | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NIA | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50, (2) (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| NICA | 5304501542 | Seal, Air, Half Shelf |
|
$ 17.20 |
