01 - Cover Sheet


02 - Cooktop Parts


03 - Blower Unit Parts


04 - Burner Box Parts


05 - Optional Parts Not Included

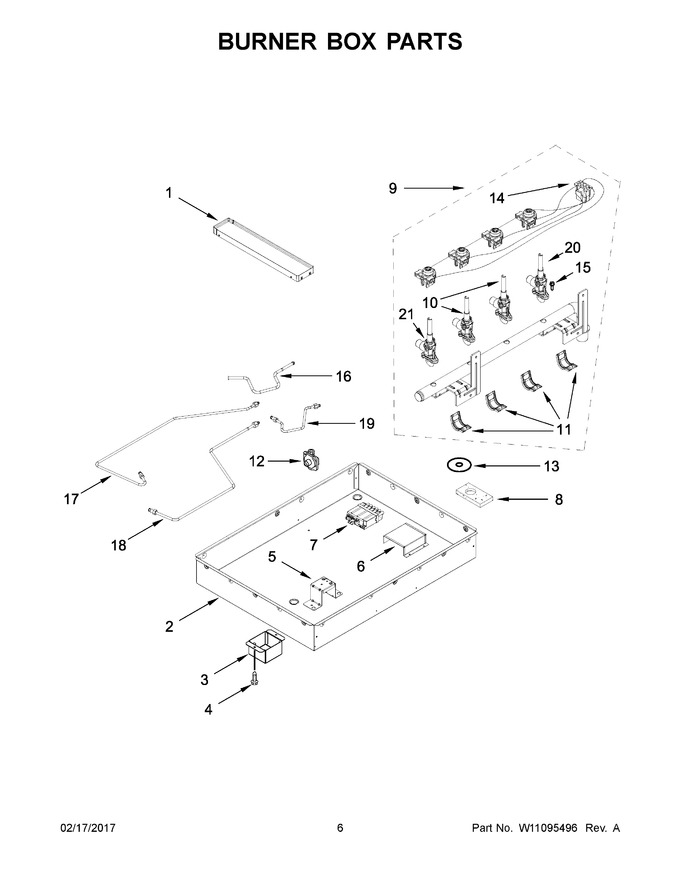

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10235990		Tray, Spill				$ 73.51
2	N/P		Box, Burner (not Serviced)		Appelez-nous	-
3	W10258697		Cover, Blower Motor Harness			Immediately	$ 81.29
4	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
5	W10811211		Bracket, Hat		Appelez-nous	-
6	W10894861		Cover, Spark		Appelez-nous	-
7	WPW10475147		Module, Spark   (Replaces: W10475147)			Immediately	$ 214.42
8	WP74001380		Seal, Manifold Pipe Inlet   (Replaces: 7208P024-60)				$ 58.91
9	W11715952		Assembly, Manifold   (Replaces: W10907218)				$ 248.18
10	W11803232		Valve (left Front & Right Rear)   (Replaces: W10844342)				$ 137.34
11	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 19.50
12	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 177.34
13	W10140571		Seal, Switch Shaft				$ 6.60
14	W11661907		Harness, Switch   (Replaces: W10859820)				$ 95.61
15	W10295997		Screw, Valve				$ 6.27
16	W11051229		Assembly, Tube (left Front)   (Replaces: W10826747)				$ 150.34
17	W11051231		Assembly, Tube (left Rear)   (Replaces: W10826748)		Appelez-nous	-
18	W11051232		Assembly, Tube (right Front)   (Replaces: W10826749)				$ 150.34
19	W11051234		Assembly, Tube (right Rear)   (Replaces: W10826750)				$ 150.34
20	W10907216		Valve (left Rear)				$ 214.61
21	W10844343		Valve (right Front)				$ 222.12
