01 - Cover Sheet

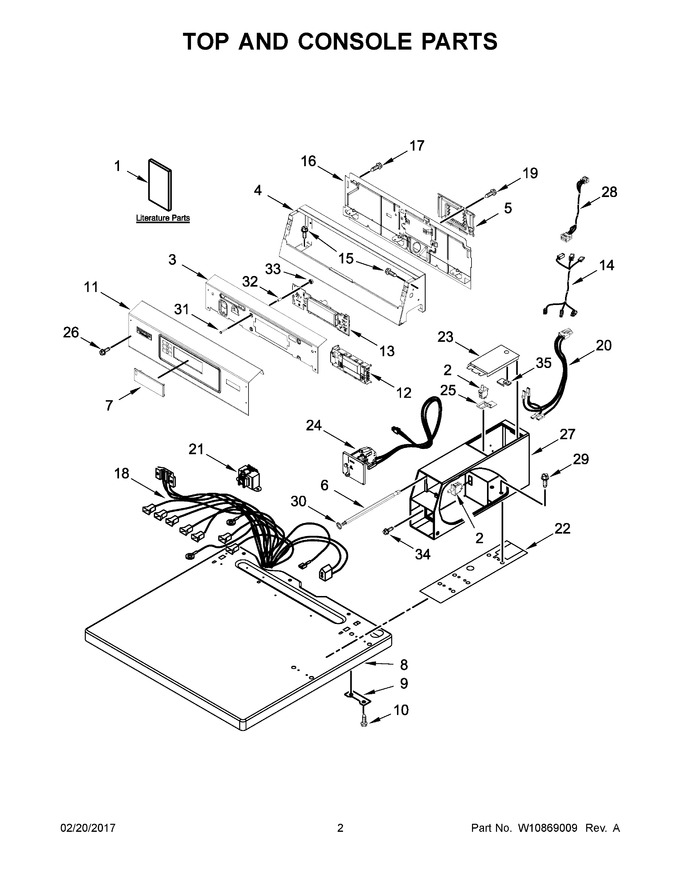

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10868655 | Installation Instructions |
|
- | |||||
| 2 | WPW10131838 | Switch, Vault Service Door (Replaces: W10131838) |
|
$ 21.52 | |||||
| 3 | W10845300 | Back Bracket, Control Panel |
|
- | |||||
| 4 | W10461094 | Console |
|
$ 159.97 | |||||
| 5 | WPW10119283 | Cover, Terminal Block (Replaces: W10286180) |
|
$ 115.52 | |||||
| 6 | WPW10137319 | Bolt, Hex Bar (Replaces: W10137319) |
|
$ 73.17 | |||||
| 7 | W11637765 | Cover, Display (Replaces: W10267645) |
|
$ 59.65 | |||||
| 8 | WPW10136707 | Top (white) (Replaces: W10136707) |
|
$ 320.56 | |||||
| 9 | 3347825 | Plate, Mounting |
|
- | |||||
| 10 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 11 | W11101010 | Fascia (Replaces: W10845282) |
|
- | |||||
| 12 | WPW10166305 | Control Board (Replaces: W10166305) |
|
$ 166.20 | |||||
| 13 | W11101012 | User Interface (Replaces: W10852649) |
|
$ 290.63 | |||||
| 14 | W11243417 | Harness, Coin Extender (Replaces: W10655203) |
|
- | |||||
| 15 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.04 | ||||
| 16 | W10863355 | Panel, Rear (console) |
|
- | |||||
| 17 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 18 | W10864806 | Harness, Main Mde20pdayw0 |
|
- | |||||
| 19 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| 20 | W11096090 | Harness, Wire (service Switch) (Replaces: W10211244) |
|
$ 11.48 | |||||
| 21 | WPW10131839 | Transformer (Replaces: W10131839) |
|
Immediately | $ 120.20 | ||||
| 22 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 27.99 | |||||
| 23 | W11283272 | Assembly, Service Door (Replaces: 3351136) |
|
$ 95.29 | |||||
| 24 | WPW10133242 | Assembly, Single Coin Drop, Mde20pdayw0 (Replaces: W10133242) |
|
$ 126.51 | |||||
| 25 | W11204533 | Bracket, Service Switch (Replaces: W10133508) |
|
- | |||||
| 26 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 6.26 | |||||
| 27 | WPW10529176 | Meter Case (Replaces: W10529176) |
|
$ 273.48 | |||||
| 28 | W10881678 | Harness, Ui |
|
- | |||||
| 29 | W11715721 | Bolt (Replaces: 3349065) |
|
$ 6.41 | |||||
| 30 | W11170663 | Washer, Lock (Replaces: W10068270) |
|
$ 3.89 | |||||
| 31 | W11117300 | Screw (Replaces: W10137322) |
|
- | |||||
| 32 | W11117166 | Standoff, Circuit Board (Replaces: W10133514) |
|
- | |||||
| 33 | WPW10139046 | Nut (Replaces: W10139046) |
|
$ 7.91 | |||||
| 34 | 3353994 | Bolt |
|
- | |||||
| 35 | W11401086 | Cam, Commercial Lock (Replaces: W10156125) |
|
$ 6.17 | |||||
| 18A | W10871258 | Harness, Main Mde20pdazw0 |
|
- | |||||
| 1A | W10868965 | Tech Sheet |
|
- | |||||
| 1B | W10868765 | Wiring Diagram, Mde20pdayw0 |
|
- | |||||
| 1C | W10868766 | Wiring Diagram, Mde20pdazw0 |
|
- | |||||
| 24A | W11643135 | Assembly, Dual Coin Drop, Mde20pdazw0 (Replaces: W10198395) |
|
$ 512.07 |
