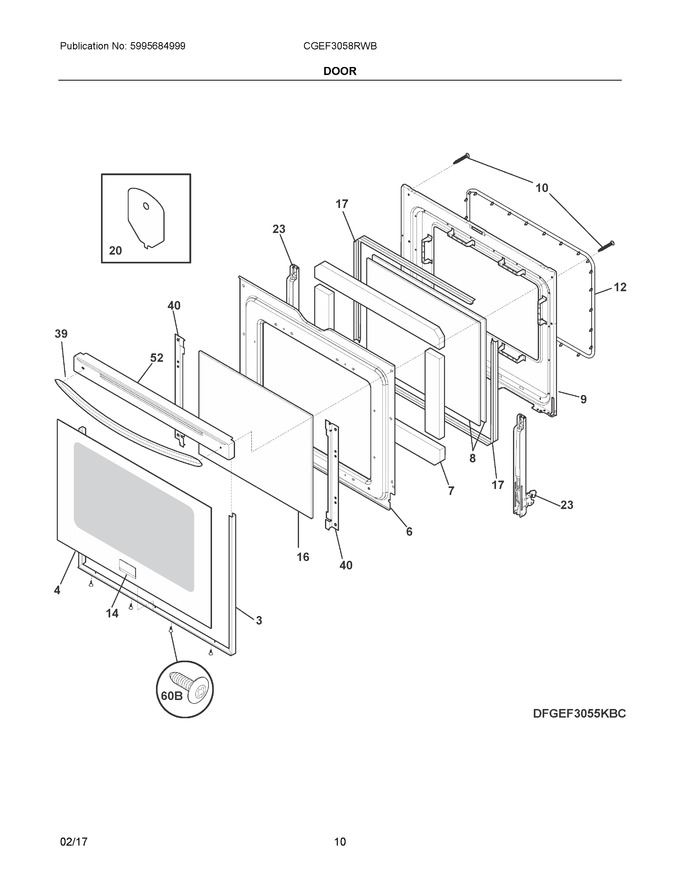

05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303935318 | Trim Kit-door, 3 Sided, White, W/tape (Replaces: 5303935393) |
|
Immediately | $ 83.64 | ||||
| 4 | 316559106 | Glass Assembly, Outer, White |
|
$ 198.22 | |||||
| 6 | 316503800 | Shield, Wool |
|
$ 106.89 | |||||
| 7 | 316513000 | Insulation, Oven Door |
|
$ 81.50 | |||||
| 8 | 316502500 | Glass, Door, Inner, (2) |
|
Immediately | $ 115.65 | ||||
| 9 | 316503620 | Liner, Oven Door |
|
$ 170.10 | |||||
| 10 | 5304507924 | Screw, Handle Mtg., #10-24 X 2, (2) (Replaces: 316439505) |
|
Immediately | $ 16.48 | ||||
| 12 | 316405000 | Seal, Oven Door |
|
Immediately | $ 179.17 | ||||
| 14 | 316572700 | Nameplate |
|
$ 81.50 | |||||
| 16 | 316502601 | Glass, Door, Airwash (Replaces: 316502600) |
|
Immediately | $ 207.85 | ||||
| 17 | 5304503172 | Spacer, Door Glass |
|
$ 25.79 | |||||
| 20 | 316533801 | Plate, Distribution, Load |
|
Immediately | $ 5.67 | ||||
| 23 | 316575908 | Hinge, Oven Door, Teal |
|
$ 145.44 | |||||
| 39 | 316554001 | Handle, Door/drawer, White |
|
$ 182.02 | |||||
| 40 | 316530403 | Bracket-airwash Glass Wash |
|
$ 33.18 | |||||
| 52 | 316575500 | Cap, Door Trim, White |
|
Immediately | $ 122.09 | ||||
| 60B | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316483102 | Label, Anti-tip (Replaces: 316483100) |
|
$ 3.56 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 |
