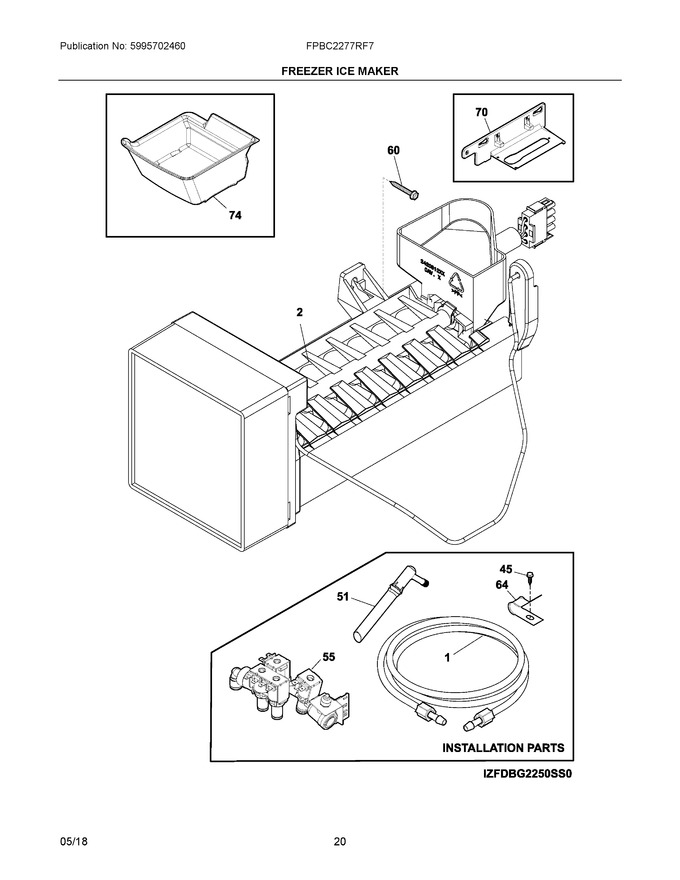

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water, 5/16-37", Yellow, Valve To, Back Connector |
|
$ 20.56 | |||||
| 2 | 241798233 | Ice Maker, Radius Cube, 115 V, Service (Replaces: 241798226) |
|
Immediately | $ 258.66 | ||||
| 42 | 218515401 | Clip-grille |
|
$ 17.72 | |||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 51 | 242159302 | Tube-water Fill, Extension, 51 |
|
$ 21.27 | |||||
| 55 | 242253002 | Valve-water, Quad Solenoid |
|
Immediately | $ 244.75 | ||||
| 60 | 5304455852 | Screw, Hex Washer Head, 8-15a X 1.000, (2) (Replaces: 5303207328) |
|
$ 12.76 | |||||
| 64 | 5304455846 | Clamp, 0.31 Id, Steel, Copper Wtr Line (Replaces: 5303001549) |
|
$ 10.63 | |||||
| 75 | 5304504660 | Container, Ice Bucket (Replaces: 5304504278) |
|
$ 106.93 | |||||
| NI | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 19.13 | |||||
| NIA | 242220204 | Tube-water, 93.5", Natural, Filter Base To, Secondary Valve |
|
Immediately | $ 40.32 | ||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 6.38 |
