FPBC2277RFA | TransGlobal : Appliance Model Lookup

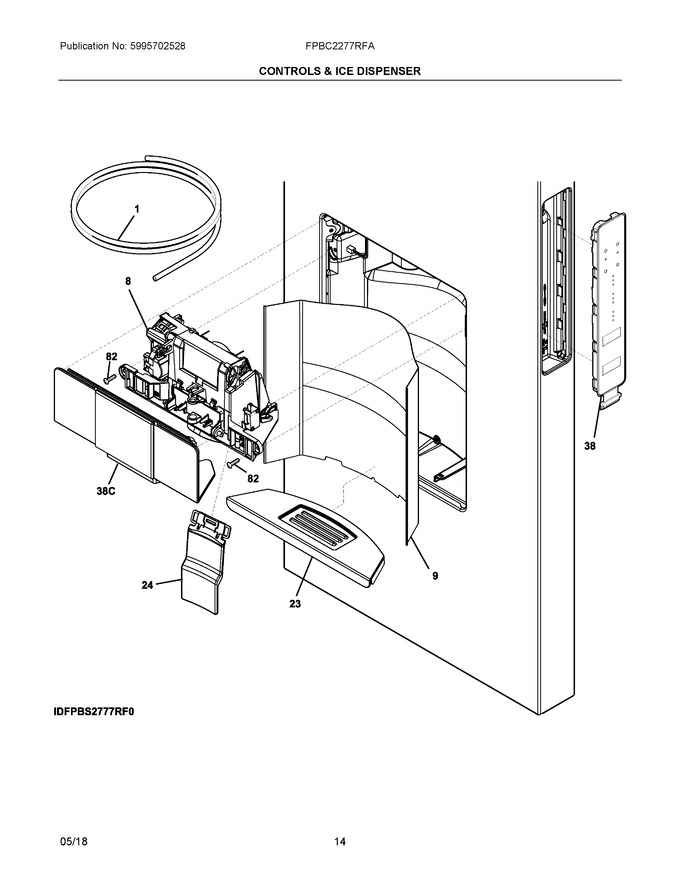

Diagram #	Part Number	Description	Availability	Ships	Price
1	218976435	Tube-water, 5/16-37", Yellow, Valve To, Back Connector			$ 20.56
8	5303918773	Module Assembly, Ice & Water, Complete (Replaces: 242270203)		Immediately	$ 255.12
9	809089801	Liner, Sump Back, Stainless			$ 194.90
23	5304501179	Sump Assembly, Ice & Water, Stainless			$ 170.63
24	5304501181	Actuator, Ice Lever, Silver			$ 100.86
38	242048230	User Interface,, Assembly, Black, W/board & Pad			$ 243.35
82	241953902	Screw, Quad Hilo, #8-18 X 0.380		Immediately	$ 17.11
38C	809091203	Control Assembly, Dispenser Uib, Stanless/black, W/touch Pad (Replaces: 809091201)			$ 387.41
NI	241503901	Connector-water, Straight, 5/16 To 1/4			$ 51.22
NI	5303918744	Kit,dspnsr Heater,dc			$ 203.24
NI	5304501175	Harness, Wiring, Dispenser, To Watson Cntl.			$ 38.28
NI	241510904	Harness-dispenser, Grounding			$ 60.96
NI	242040806	Harness-wiring, Door			$ 42.53
NI	241806601	Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001)		Immediately	$ 70.56
NIA	218976437	Tube-water Inlet, 5/16 - 59", Yellow, Cd	Appelez-nous	-
NIB	241920106	Tube-water, Ice Maker Fill, 5/16-54", Green, Back Connector, To Ff Ice Maker (Replaces: 241920104)		Immediately	$ 60.67
NIC	241964707	Tube-water, 1/4-36", Light Green, Valve To, Back Connector		Immediately	$ 18.43
NID	241965906	Tube-water, 5/16-67", Natural, Dispenser To, Back Connector		Immediately	$ 24.10
NIE	242169404	Tube-water, Ice Mold Fill, 1/4 - 44", Blue, W/extension	Appelez-nous	-
NIF	242220119	Tube-water, 5/16-97.5", Natural, Filter Base To, Secondary Valve		Immediately	$ 30.47
NIG	242220204	Tube-water, 93.5", Natural, Filter Base To, Secondary Valve		Immediately	$ 40.32
