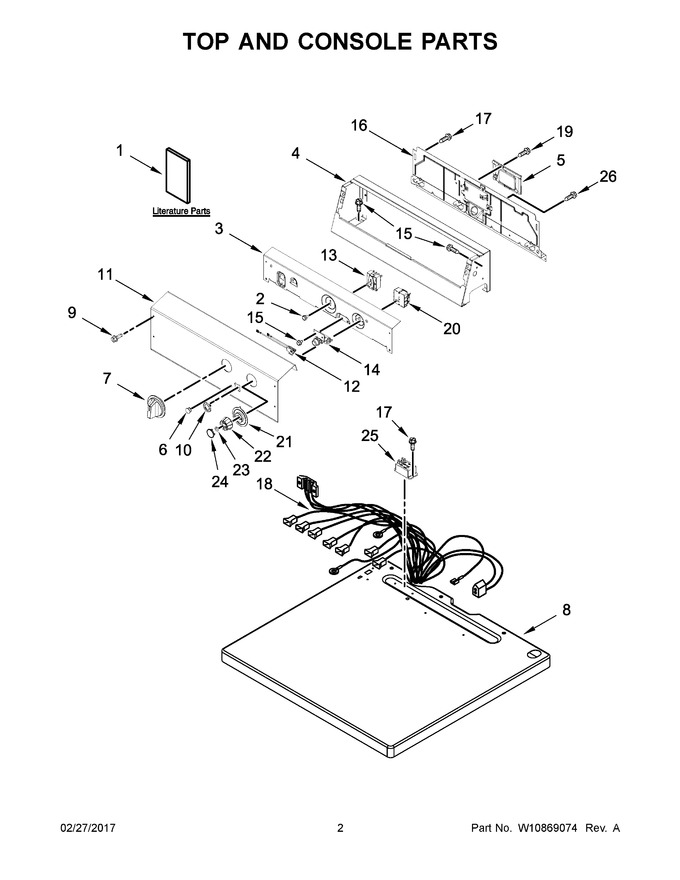

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10868681		Installation Instructions		Appelez-nous	-
2	W10139100		Screw				$ 11.15
3	W10461071		Back Bracket, Non-coin		Appelez-nous	-
4	W11124005		Console   (Replaces: W10461095)				$ 204.36
5	W10601020		Cover, Terminal Block		Appelez-nous	-
6	WPW10133502		Indicator Lights Assembly   (Replaces: W10133502)				$ 11.58
7	W11643382		Knob   (Replaces: W10133507)			Immediately	$ 23.64
8	WPW10136704		Top (white)   (Replaces: W10136704)				$ 234.39
9	WPW10131119		Screw   (Replaces: W10386302)				$ 6.26
10	W10510149		Bezel - Pts			Immediately	$ 24.54
11	W11101053		Fascia   (Replaces: W10845281)		Appelez-nous	-
12	W10139459		Lamp, Indicator		Appelez-nous	-
13	W10327100		Switch, Cycle Selection				$ 184.35
14	W11097274		Switch, Push To Start   (Replaces: W10424310)				$ 60.71
15	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
16	W10863352		Panel, Rear (console)		Appelez-nous	-
17	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
18	W10864827		Harness, Main		Appelez-nous	-
19	WP90767		Screw   (Replaces: W10748311)			Immediately	$ 7.04
20	W11101054		Timer, Dryer   (Replaces: W10878421)		Appelez-nous	-
21	W10133506		Skirt, Dial				$ 17.06
22	W10906058		Knob		Appelez-nous	-
23	W10155650		Nut, Hex				$ 12.03
24	WPW10133501		Cap, Knob   (Replaces: W10133501)				$ 54.76
25	WP1188043		Relay, Heater 230v   (Replaces: 1188043)				$ 99.12
26	W10850756		Screw   (Replaces: W10773242)				$ 6.98
1A	W10868962		Wiring Diagram		Appelez-nous	-
