01 - Cover Sheet

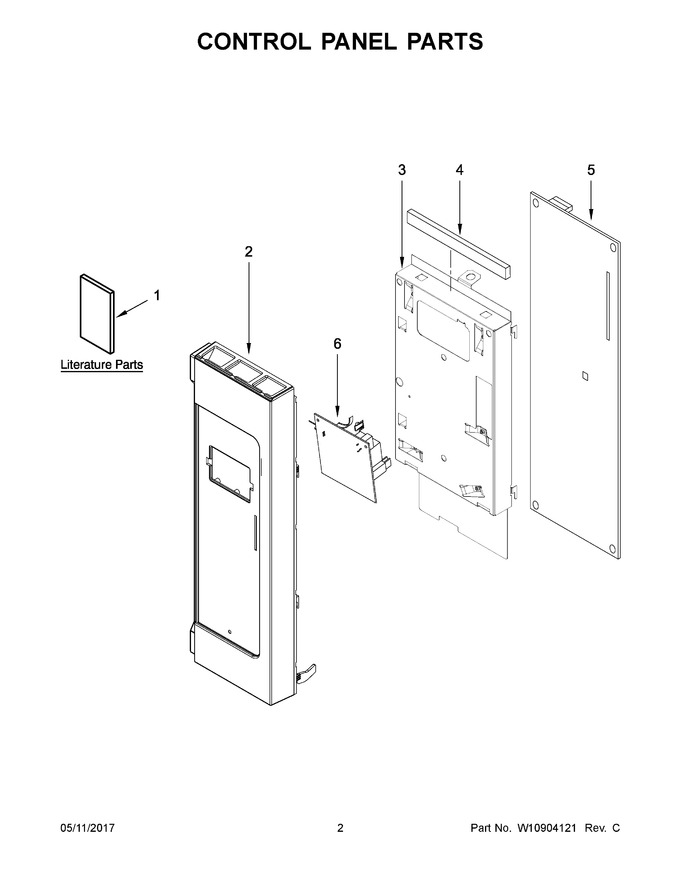

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10823831 | Installation Instructions |
|
- | |||||
| 2 | W10890786 | Control Panel Assembly (includes Lens And Membrane Switch) (white) |
|
- | |||||
| 3 | W10833366 | Backer, Control |
|
- | |||||
| 4 | W10833531 | Seal, Control |
|
$ 21.01 | |||||
| 5 | W11342846 | Pcba, Appliance Control Unit (Replaces: W11044727) |
|
$ 245.53 | |||||
| 6 | W11333816 | Pcba, User Interface (Replaces: W11044691) |
|
$ 159.38 | |||||
| 1A | W10884014 | Use And Care Guide |
|
- | |||||
| 1B | W10631828 | Quick Reference Guide |
|
- | |||||
| 1C | W10848098 | Tech Sheet |
|
- | |||||
| 2A | W10890785 | Control Panel Assembly (includes Lens And Membrane Switch) (black) |
|
- | |||||
| 2B | W10890787 | Control Panel Assembly (includes Lens And Membrane Switch) (biscuit) |
|
- | |||||
| 2C | W10918929 | Control Panel Assembly (includes Lens And Membrane Switch) (stainless) (Replaces: W10846298) |
|
- |
