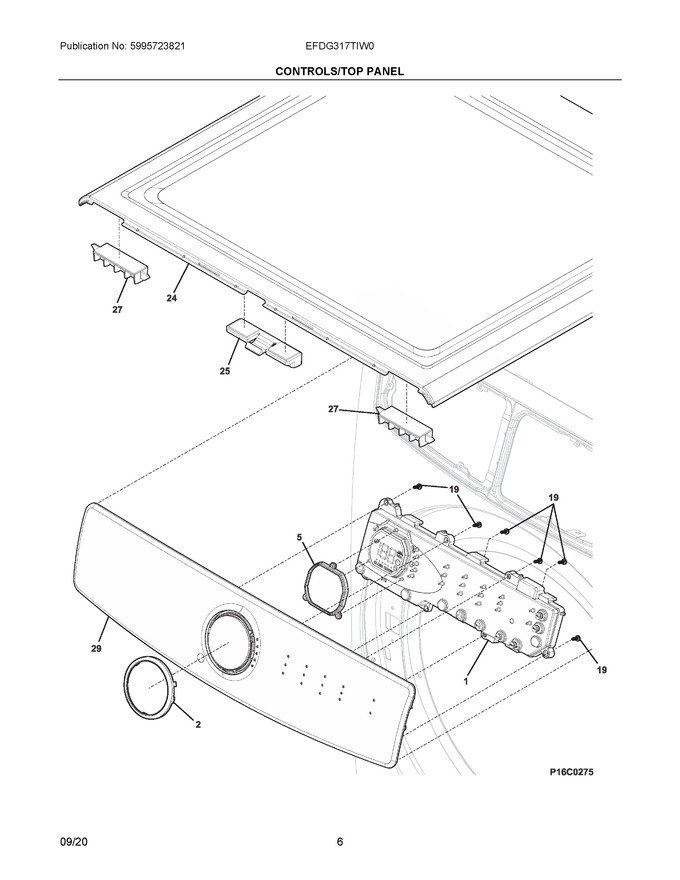

04 - Controls/top Panel
05 - Motor
06 - Burner
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304510359 | Board Assembly, User Interface, W/housing |
|
$ 284.11 | |||||
| 2 | 5304505044 | Trim, Ring, Chrome |
|
$ 38.26 | |||||
| 5 | 5304505045 | Seal, Display Area |
|
- | |||||
| 19 | 5304505441 | Screw, Pph B, 6-20x.375 |
|
$ 6.51 | |||||
| 24 | 5304505081 | Top Panel, White |
|
$ 227.48 | |||||
| 25 | 5304505357 | Clip, Top, W/tape |
|
$ 65.30 | |||||
| 27 | 5304505423 | Block, Top, (2), W/tape |
|
$ 19.85 | |||||
| 29 | 5304510126 | Console Assembly, W/overlay |
|
$ 155.14 | |||||
| NI | 5304510133 | Harness, Wiring, Main |
|
- | |||||
| NI | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| NIA | 134926600 | Damper, Sound |
|
$ 14.18 |
