SELECT A DIAGRAM
New Model Search:

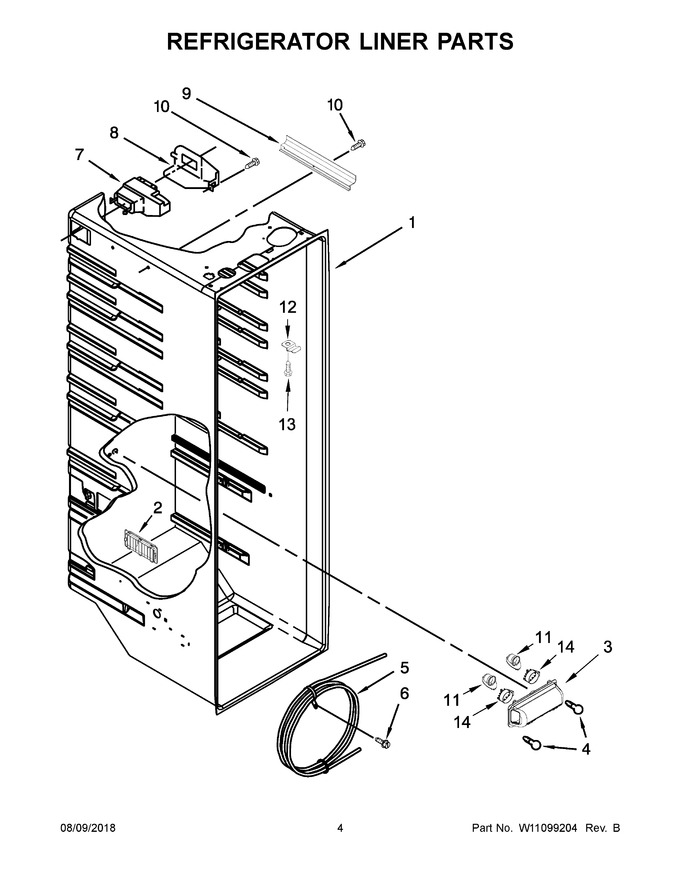

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10550195 | Louver |
|
- | |||||
| 3 | W11239891 | Lens, Light (includes Gasket) (Replaces: W10166130) |
|
$ 87.02 | |||||
| 4 | W11679940 | Bulb, Light (Replaces: 2311792) |
|
Immediately | $ 10.17 | ||||
| 5 | WPW10276792 | Tubing, Water Reservoir (Replaces: W10276792) |
|
Immediately | $ 123.81 | ||||
| 6 | 488280 | Screw |
|
- | |||||
| 7 | WPW10151374 | Assembly, Air Diffuser (Replaces: W10151374) |
|
Immediately | $ 89.80 | ||||
| 8 | 2152019 | Cover, Air Diffuser |
|
$ 77.43 | |||||
| 9 | W10252495 | Cover, Wiring |
|
- | |||||
| 10 | W10759522 | Screw (Replaces: 486298) |
|
$ 6.98 | |||||
| 11 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 99.14 | ||||
| 12 | 2311612 | Clip, Control Box |
|
- | |||||
| 13 | WP489464 | Screw (Replaces: 3400824) |
|
Immediately | $ 7.05 | ||||
| 14 | WP2175210 | Shroud, Light (Replaces: 2169193) |
|
$ 74.35 |
