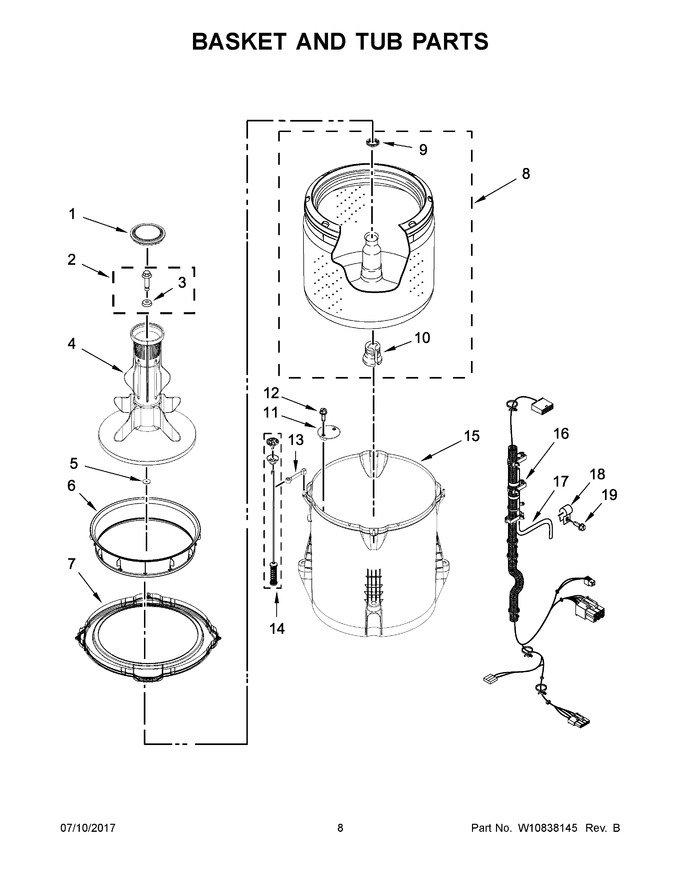

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10131111 | Cap, Agitator (Replaces: W10131111) |
|
Immediately | $ 7.64 | ||||
| 2 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 4.72 | ||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 9.98 | ||||
| 4 | WPW10131112 | Agitator (Replaces: W10131112) |
|
Immediately | $ 111.72 | ||||
| 5 | W10832827 | Rubber Washer, Impeller (Replaces: W10755559) |
|
- | |||||
| 6 | W11222084 | Adapter, Balance Ring (Replaces: W10424289) |
|
Immediately | $ 62.44 | ||||
| 7 | WPW10461196 | Ring, Tub (Replaces: W10461196) |
|
Immediately | $ 158.83 | ||||
| 8 | W10738339 | Basket Assembly (Replaces: W10389330) |
|
$ 239.27 | |||||
| 9 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.00 | ||||
| 10 | W11084139 | Block, Basket Drive (Replaces: W10198148) |
|
Immediately | $ 15.37 | ||||
| 11 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 55.94 | |||||
| 12 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.04 | ||||
| 13 | W11403873 | Strap, Snubber (Replaces: W10839119) |
|
Immediately | $ 22.27 | ||||
| 14 | W10780046 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Balls And Suspension Bushings) (Replaces: W10821942) |
|
Immediately | $ 154.19 | ||||
| 15 | W10371566 | Tub (Replaces: W10238320) |
|
$ 305.43 | |||||
| 16 | W11740606 | Harness, Lower (includes Pressure Hose & Cable Tie) (Replaces: W10520397) |
|
Immediately | $ 208.49 | ||||
| 17 | WP353244 | Hose, Pressure Switch (Replaces: W10531633) |
|
Immediately | $ 53.94 | ||||
| 18 | W10005430 | Clamp, Cable |
|
Immediately | $ 8.17 | ||||
| 19 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 7.20 |
