Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

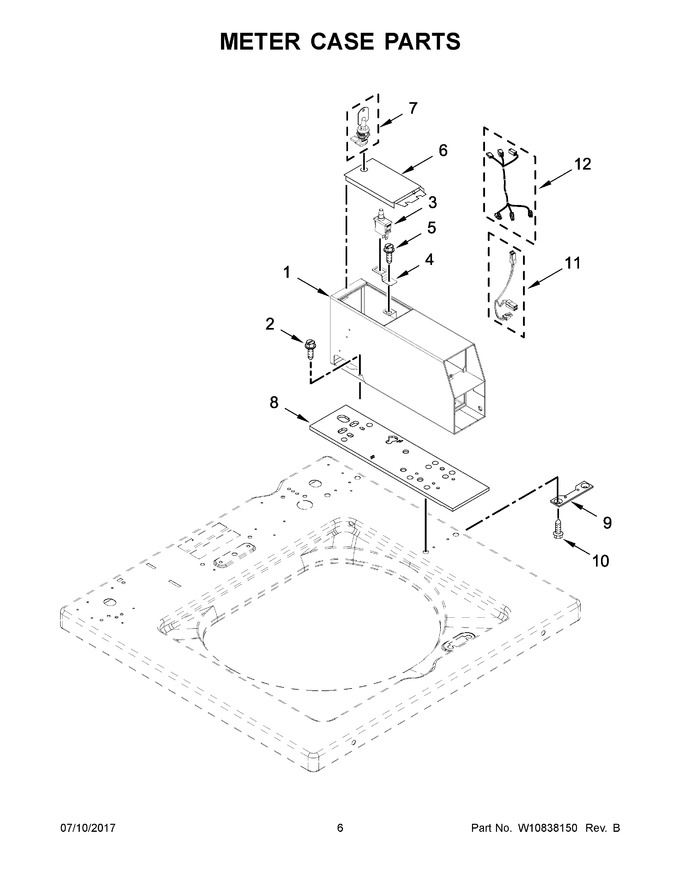

1	WPW10529176		Meter Case   (Replaces: W10529176)				$ 273.48
2	W11715721		Bolt   (Replaces: 3349065)				$ 6.41
3	W11123448		Switch, Vault Service Door   (Replaces: W10133289)		Appelez-nous	-
4	W11204533		Bracket, Service Switch   (Replaces: W10133508)		Appelez-nous	-
5	WPW10139210		Screw   (Replaces: W10139210)				$ 6.75
6	W11283272		Assembly, Service Door   (Replaces: 3351136)				$ 95.29
7	W11315637		777 Lock And Key, Complete   (Replaces: 8316526)			Immediately	$ 36.42
8	WP3954812		Cushion, Meter Case   (Replaces: 3954812)				$ 27.99
9	3347825		Plate, Mounting		Appelez-nous	-
10	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.07
11	W11096090		Harness, Wire (service Switch)   (Replaces: W10211244)				$ 11.48
12	W11243417		Harness, Coin Extender   (Replaces: W10655203)		Appelez-nous	-
