SELECT A DIAGRAM

01 - Cover Sheet

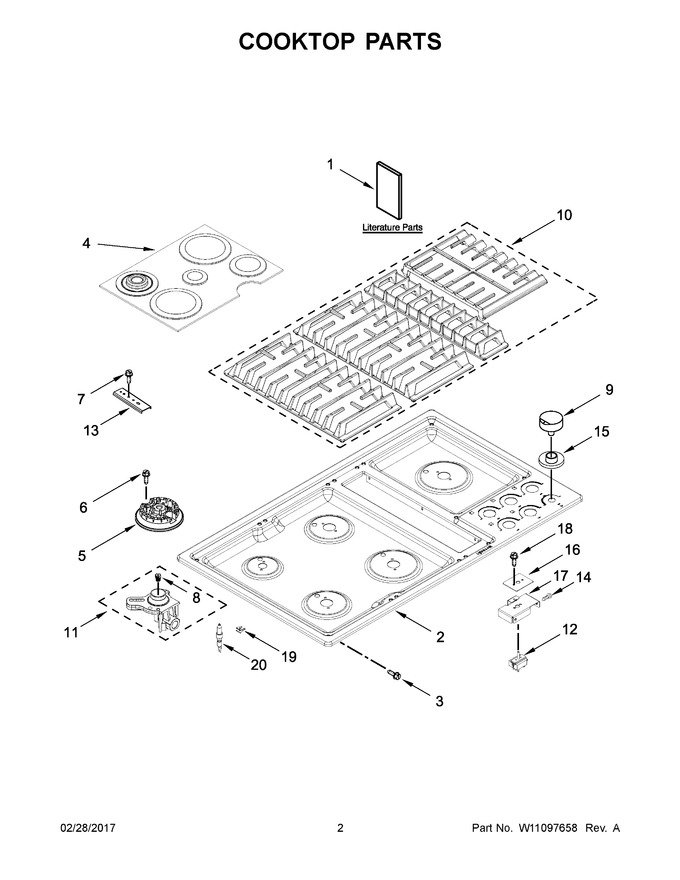

02 - Cooktop Parts


03 - Blower Unit Parts


04 - Burner Box Parts


05 - Optional Parts Not Included


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10848423		Guide, Use & Care		Appelez-nous	-
2	W11051501		Top, Main (stainless)   (Replaces: W10842064)				$ 488.21
3	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 6.47
4	W11379294		Kit, Burner Cap   (Replaces: W10910375)			Immediately	$ 162.51
5	W11531097		Spreader, Flame (left Front)   (Replaces: W10732969)				$ 69.56
6	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
7	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
8	W10907868		Orifice (left Front)				$ 77.73
9	W11084159		Knob, Control (stainless)   (Replaces: W10884723)				$ 71.54
10	W11369704		Kit, Grate (black)   (Replaces: W10821816)				$ 316.40
11	W10826754		Holder, Orifice (10k) (left Front)				$ 90.98
12	W11676792		Switch, Blower   (Replaces: W10866564)				$ 57.40
13	8186533		Bracket, Cooktop Mounting   (Replaces: 4455917)				$ 79.60
14	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 6.47
15	W11240529		Bezel (stainless)   (Replaces: W10884725)				$ 52.88
16	WP71002569		Gasket, Infinite Switch   (Replaces: 7201P077-60)			Immediately	$ 9.06
17	W10814795		Bracket, Switch Mount		Appelez-nous	-
18	WP7101P309-60		Screw   (Replaces: 7101P309-60)			Immediately	$ 6.26
19	W11684564		Clip, Spring (electrode)   (Replaces: W10827923)			Immediately	$ 10.71
20	W11690659		Electrode (left Front)   (Replaces: W10876259)				$ 63.06
11A	W10826751		Holder, Orifice (5k) (left Rear)		Appelez-nous	-
11B	W10826753		Holder, Orifice (15k) (center Front)				$ 90.93
11C	W10827697		Holder, Orifice (12.5k) (center Rear)				$ 87.85
11D	W10826752		Holder, Orifice (17k) (right Rear)				$ 87.86
1A	W10848427		Instructions, Installation		Appelez-nous	-
1B	W10917793		Diagram, Wiring		Appelez-nous	-
1C	W10240007		Instructions, Lp Conversion		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
20A	W10905489		Electrode (left Rear)				$ 59.77
20B	W11688146		Electrode (center Front)   (Replaces: W10876260)				$ 25.62
20C	W10876261		Electrode (center Rear)				$ 59.67
20D	W10876262		Electrode (right Rear)				$ 49.95
5A	W11531098		Spreader, Flame (left Rear)   (Replaces: W10732968)				$ 69.19
5B	W11531096		Spreader, Flame (center Front & Right Rear)   (Replaces: W10732971)				$ 70.17
5C	W11084063		Spreader, Flame (center Rear)   (Replaces: W10732970)				$ 108.32
8A	W11677633		Orifice (left Rear)   (Replaces: W10849719)				$ 84.99
8B	W10907866		Orifice (center Front)				$ 77.73
8C	W10907867		Orifice (center Rear)		Appelez-nous	-
8D	W10907865		Orifice (right Rear)				$ 77.73
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	W10909126		Kit, Plenum Screw			Immediately	$ 18.98
NI	W10834701		Harness, Main		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11083838		Kit, Lp Orifice   (Replaces: W11022463)				$ 142.73
NI	W10835283		Harness, Blower				$ 62.88
NI	W11465762		Harness, Jumper   (Replaces: W10858227)				$ 28.61
NI	W10831977		Cord, Power				$ 96.50

    View Diagram in Separate Window       Print Part List
