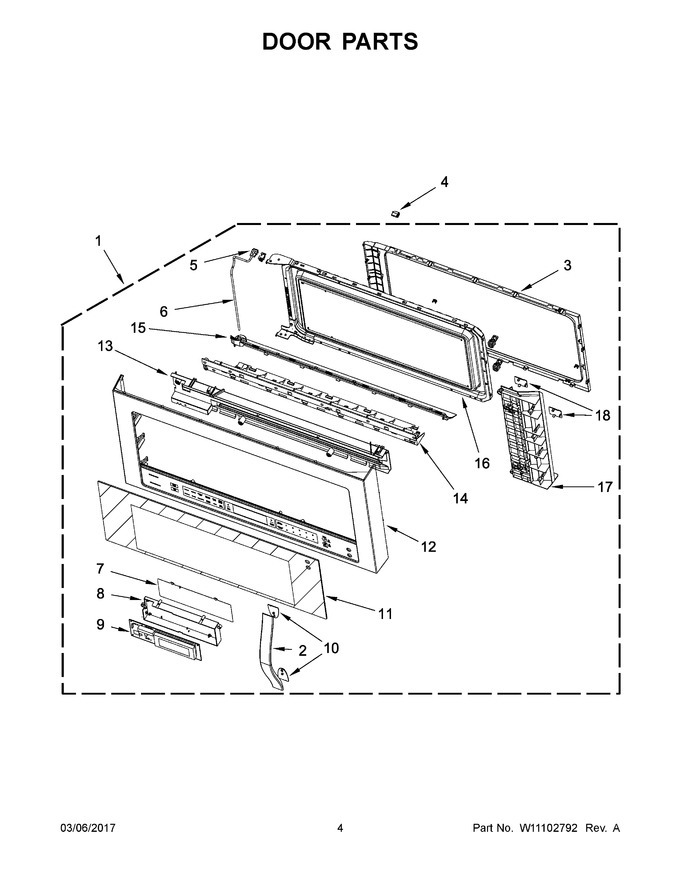

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10913751 | Door, Complete (white Ice) |
|
- | |||||
| 2 | W10478162 | Handle (stainless) |
|
- | |||||
| 3 | W10648086 | Frame, Inner |
|
$ 86.25 | |||||
| 4 | W10643448 | Stopper, Door |
|
$ 19.76 | |||||
| 5 | W10770972 | Holder, Door Cable |
|
- | |||||
| 6 | W10508745 | Wire, Door Control Cable |
|
$ 24.86 | |||||
| 7 | W10540298 | Plate, Ui Insulation |
|
- | |||||
| 8 | W10770970 | Holder, Ui |
|
- | |||||
| 9 | W11087923 | Control (Replaces: W10832889) |
|
$ 274.66 | |||||
| 10 | W10478213 | Cushion, Handle |
|
- | |||||
| 11 | WPW10531174 | Glass, Outer (white Ice) (Replaces: W10531174) |
|
$ 188.63 | |||||
| 12 | W10893405 | Assembly, Door Frame (white Ice) (Replaces: W10913747) |
|
- | |||||
| 13 | W10617743 | Cover, Ui |
|
- | |||||
| 14 | W10476546 | Bracket, Door |
|
- | |||||
| 15 | W10570992 | Frame, Back Decorating (white) |
|
- | |||||
| 16 | W10568846 | Body, Door (with Glass) |
|
$ 215.51 | |||||
| 17 | W10734944 | Bracket, Outer Door (white) |
|
- | |||||
| 18 | W10571119 | Cover, Screw (white) |
|
- | |||||
| 11A | W10478675 | Glass, Outer (stainless) (black Ice Models) |
|
- | |||||
| 12A | W10893406 | Assembly, Door Frame (black Ice) (Replaces: W10913748) |
|
- | |||||
| 15A | W10476550 | Frame, Back Decorating (black) |
|
- | |||||
| 17A | W11699920 | Bracket, Outer Door (black) (Replaces: W10734943) |
|
$ 73.87 | |||||
| 18A | W10478657 | Cover, Screw (black) |
|
Immediately | $ 19.25 | ||||
| 1A | W10913750 | Door, Complete (black Ice) |
|
- |
