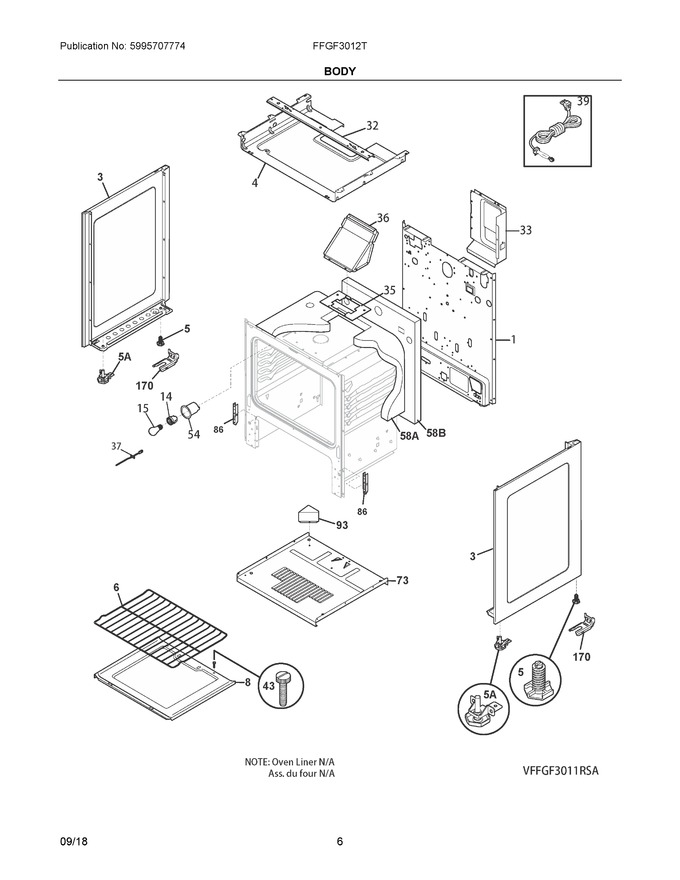

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029419		Panel, Main Back		Appelez-nous	-
3	316400144		Panel, Bodyside, Black, Rh   (Replaces: 316400118)			Immediately	$ 134.69
4	316067211		Burner Box		Appelez-nous	-
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	316067902		Rack, Oven, (2)			Immediately	$ 103.10
8	316495901		Panel, Oven Bottom				$ 134.40
14	316116400		Receptacle, Oven Light			Immediately	$ 56.10
15	316538904		Lamp, Oven Light   (Replaces: 316538901)			Immediately	$ 20.48
32	316107504		Channel, Burner Support		Appelez-nous	-
33	316055600		Shield, Spark Module, Galv Steel		Appelez-nous	-
35	316542102		Gasket-flue   (Replaces: 316542100)				$ 12.13
36	316204401		Flue, Black		Appelez-nous	-
37	316233903		Probe, Oven Temp			Immediately	$ 57.29
39	5304534377		Cord, Electric Power   (Replaces: 807108202)				$ 26.85
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 9.93
54	5303271606		Housing, Oven Light		Appelez-nous	-
73	316109902		Base, Low Broil				$ 131.25
86	316441300		Receptacle, Hinge				$ 21.97
93	316110000		Shield, Ignitor, Metal		Appelez-nous	-
170	316112005		Anti Tip Kit, Assy, W/template			Immediately	$ 18.91
3A	316400145		Panel, Bodyside, Black, Lh   (Replaces: 316400119)			Immediately	$ 133.93
58A	3017142		Insulation, Oven Wrapper				$ 193.50
58B	316054202		Insulation, 1", Oven Back				$ 76.59
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	5304503371		Harness, Wiring, Main				$ 112.24
NI	316539800		Retainer, Wire				$ 14.41
NI	5304491650		Block, Stability, Concrete		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NIA	5303289684		Fastener, Tanden Wire, (2)		Appelez-nous	-
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
NIA	316130300		Spacer, Burner Box		Appelez-nous	-
NIA	316064600		Support, Oven Bottom				$ 18.95
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIC	316541700		Template, Anti-tip		Appelez-nous	-
