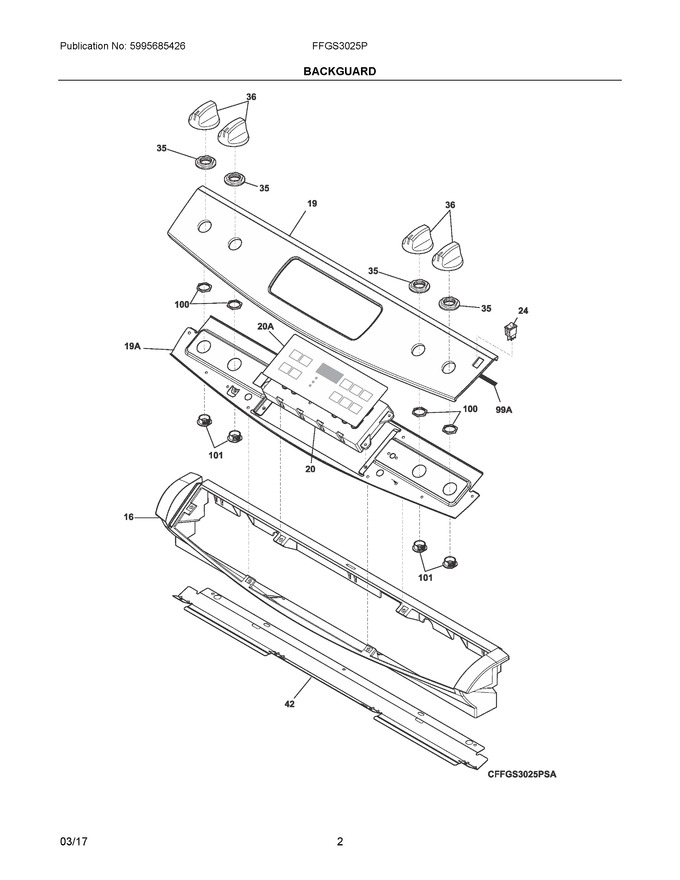

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318299102		Console, Assy., Black				$ 494.96
19	318235193		Panel, Control, Black		Appelez-nous	-
20	316557141		Clock/timer, Electronic, Es300				$ 455.50
24	5304527841		Switch, Rocker, Black   (Replaces: 316005602)			Immediately	$ 11.38
35	318233720		Retainer, Control Panel, Black				$ 20.48
36	316543818		Knob, Control, Black				$ 31.19
42	318574701		Support, Control Panel, Black				$ 62.69
100	318233800		Nut, Hex				$ 63.53
101	318233400		Bushing, Retainer				$ 43.21
19A	318224402		Panel, Control Mtg.		Appelez-nous	-
20A	316419141		Overlay, Clock, Black, Es300			Immediately	$ 56.87
99A	318223900		Gasket, Dark Grey			Immediately	$ 82.80
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
