SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard

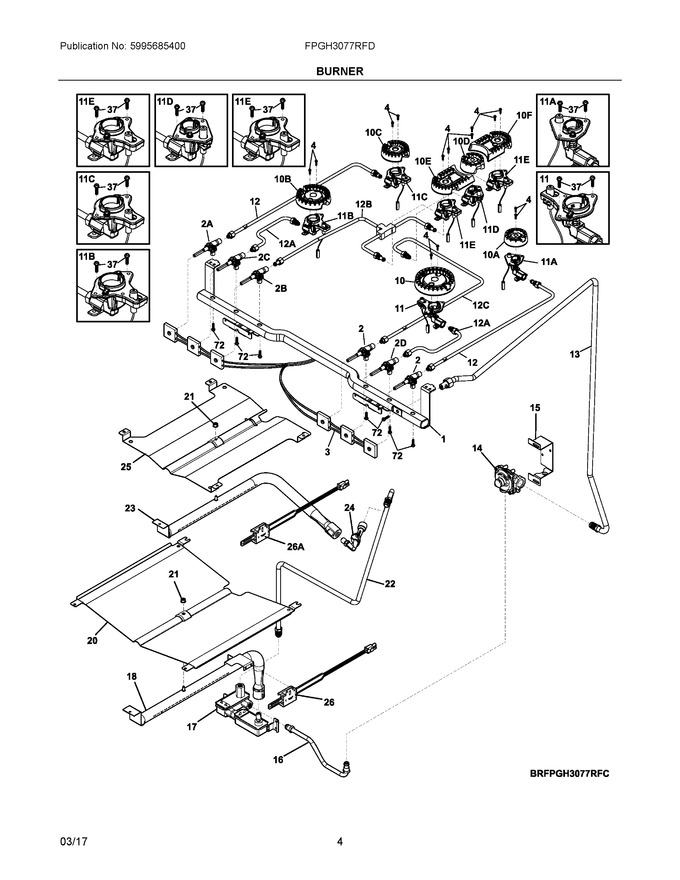

03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	809145501		Manifold, Pipe Assembly		Appelez-nous	-
2	5304506548		Valve, Top Burner, Green Stem, 850btu			Immediately	$ 82.66
3	5304509697		Harness, Ignitor, W/6 Switches				$ 98.60
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
10	316438400		Burner, Sealed, 18.2k			Immediately	$ 83.42
11	5304500189		Ignitor/orifice Assy., Top Burner, 18k, W/holder-wires				$ 66.74
12	5304500110		Tube, Burner, Rear				$ 51.57
13	5304500113		Tube, Supply, Main				$ 129.70
14	316091711		Regulator, Pressure   (Replaces: 316416705)			Immediately	$ 90.03
15	318262811		Bracket, Regulator		Appelez-nous	-
16	5304500115		Tube, Regulator, To Safety				$ 48.91
17	316031501		Valve, Safety			Immediately	$ 296.26
18	5304502520		Burner, Bake				$ 173.66
20	139005100		Baffle, Bake Burner				$ 95.68
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	5304500114		Tube, Supply, Broil				$ 55.99
23	5304499689		Burner, Broil				$ 95.56
24	5304500107		Mixer Elbow, Broil				$ 116.03
25	316401301		Baffle, Broil Burner				$ 173.57
26	139013700		Ignitor, Burner			Immediately	$ 171.52
37	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
10A	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
10B	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10C	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10D	5304500134		Burner, Simmer, 3k, Center				$ 38.68
10E	5304523855		Burner, Simmer Oval, 6k, Front   (Replaces: 5304500135)				$ 69.01
10F	5304523856		Burner, Simmer Oval, 6k, Rear   (Replaces: 5304500136)			Immediately	$ 68.26
11A	5304500184		Ignitor/orifice Assy., Top Burner, 5k, W/holder-wires				$ 72.05
11B	5304500188		Ignitor/orifice Assy., Top Burner, 12k, W/holder-wires				$ 73.92
11C	5304500186		Ignitor/orifice Assy., Top Burner, 7.5k, W/holder-wires				$ 74.32
11D	5304500185		Ignitor/orifice Assy., Simmer Burner, Center, 3k, W/holder-wires				$ 64.46
11E	5304500187		Ignitor/orifice Assy., Simmer Burner, 6k				$ 66.74
12A	5304500111		Tube, Burner, Front				$ 53.15
12B	808868801		Tube, Simmer Burner, Outer		Appelez-nous	-
12C	5304500112		Tube, Simmer Burner, Center		Appelez-nous	-
26A	139013701		Ignitor, Broil Burner				$ 170.81
2A	5304507282		Valve, Top Burner, White Stem, 1500btu   (Replaces: 5304506550)			Immediately	$ 53.85
2B	5304507283		Valve, Top Burner, Clear Stem, 2000btu				$ 53.85
2C	5304506551		Valve, Top Burner, Pink Stem, 2500btu				$ 61.43
2D	5304507284		Valve, Top Burner, Purple Stem, 3000btu				$ 53.34
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	808695309		Lp Conversion Kit				$ 132.71
NI	808041201		Harness, Wiring, Oven Ignitors				$ 51.57
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	5304507056		Clip, Spring, Manifold, (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
