01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

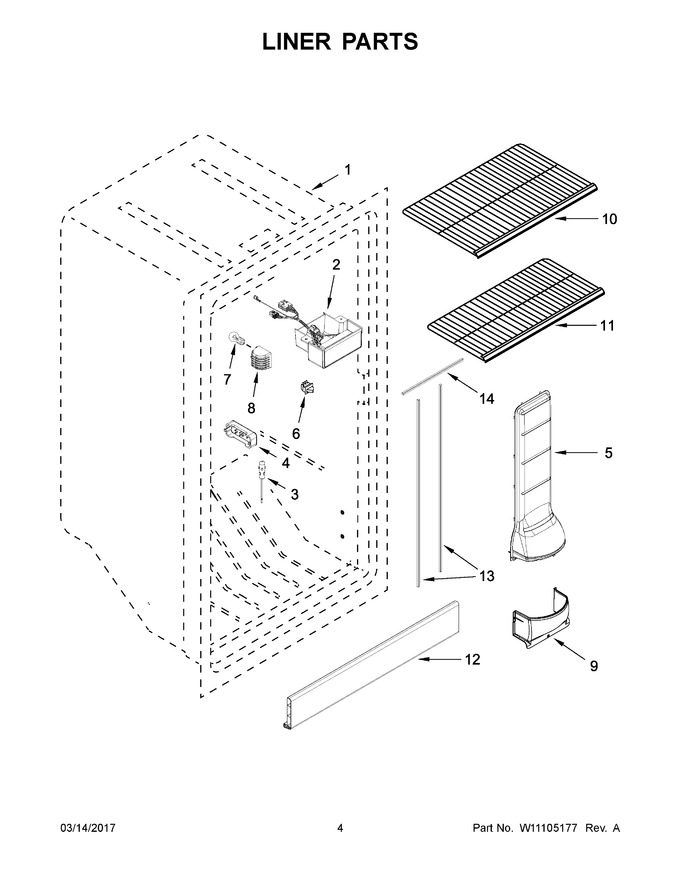

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11382529 | Control Assembly (Replaces: W10701912) |
|
Immediately | $ 346.54 | ||||
| 3 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 101.55 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 26.77 | |||||
| 5 | W10574585 | Air Tower |
|
- | |||||
| 6 | W10755325 | Switch, Light |
|
Immediately | $ 35.29 | ||||
| 7 | W11679940 | Bulb, Light (Replaces: 2311792) |
|
Immediately | $ 10.17 | ||||
| 8 | W10569269 | Lens, Control Box |
|
$ 74.13 | |||||
| 9 | W10574581 | Cover, Evaporator Fan |
|
- | |||||
| 10 | W10836976 | Wire Shelf, Deep (Replaces: W10569280) |
|
Immediately | $ 130.50 | ||||
| 11 | W10838567 | Wire Shelf, Shallow (Replaces: W10569281) |
|
Immediately | $ 71.69 | ||||
| 12 | W10581588 | Trim, Door |
|
$ 76.98 | |||||
| 13 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574563) |
|
$ 7.50 | |||||
| 14 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 7.50 |
