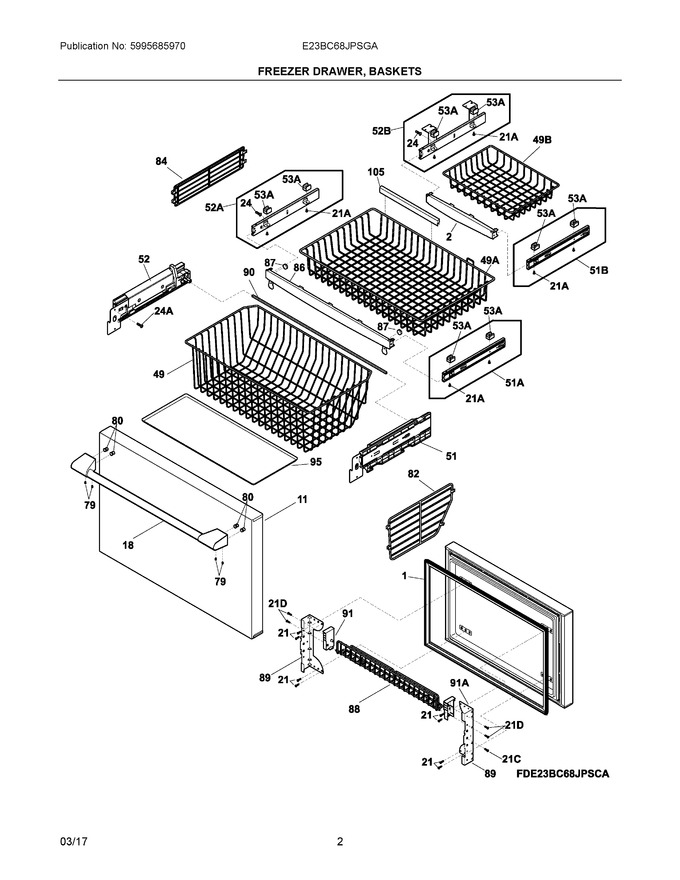

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304537408 | Gasket-frzr Drawer, White (Replaces: 5304502761) |
|
Immediately | $ 86.28 | ||||
| 2 | 242077901 | Bar-stabilizer, Freezer Drawer |
|
$ 66.68 | |||||
| 11 | 241987918 | Drawer, Stainless, Freezer |
|
$ 525.63 | |||||
| 18 | 242052504 | Handle Assembly, Stainless, W/endcaps (Replaces: 241637928) |
|
$ 313.97 | |||||
| 21 | 241690602 | Screw, Quadrex, #10-16 Hilo |
|
Immediately | $ 10.63 | ||||
| 24 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 49 | 242027002 | Basket-frzr, Lower |
|
$ 215.04 | |||||
| 51 | 5303918696 | Slide Assembly, Lower Basket, Rh, W/pinion |
|
$ 223.25 | |||||
| 52 | 5303918695 | Slide Assembly, Lower Basket, Lh, W/pinion |
|
$ 230.35 | |||||
| 79 | 218755406 | Screw-set, 10-32 X 0.375 |
|
- | |||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 82 | 242027102 | Divider, Basket |
|
- | |||||
| 84 | 241780908 | Divider, Basket, Upper |
|
$ 54.63 | |||||
| 86 | 5304507340 | Trim, Drawer, Stabilizer (Replaces: 241807605) |
|
Immediately | $ 45.55 | ||||
| 87 | 241812202 | Magnet, Door |
|
$ 72.30 | |||||
| 88 | 241824009 | Rack-non Tilt-out, Door (Replaces: 241824007) |
|
$ 411.79 | |||||
| 89 | 241972302 | Bracket-freezer Drawer |
|
$ 109.21 | |||||
| 90 | 241770704 | Bar-timing |
|
$ 22.58 | |||||
| 91 | 241824102 | Cap-door Rack |
|
$ 17.44 | |||||
| 95 | 241770811 | Tray, Spill Guard |
|
$ 109.36 | |||||
| 105 | 242116801 | Trim-basket |
|
$ 17.72 | |||||
| 21A | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 21C | 242146401 | Screw, Ser Hex Wash Hd, 1/4-20 X 5/8, (4) |
|
Immediately | $ 14.27 | ||||
| 21D | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| 24A | 240383412 | Screw, Truss Hd Quad, #10-16 X .750, Zinc |
|
$ 11.44 | |||||
| 49A | 241780823 | Basket-frzr, Upper |
|
$ 172.88 | |||||
| 49B | 241831305 | Basket-frzr, Ceiling, Up Upper |
|
$ 191.21 | |||||
| 51A | 241894227 | Slide Assembly, Basket, Rh, Freezer Drawer |
|
$ 121.91 | |||||
| 51B | 241894232 | Slide Assembly, Ceiling Basket, Rh |
|
- | |||||
| 52A | 241894228 | Slide Assembly, Basket, Lh, Freezer Drawer |
|
$ 121.20 | |||||
| 52B | 241894231 | Slide Assembly, Ceiling Basket, Lh, W/brackets |
|
- | |||||
| 53A | 5303918801 | Retainer-basket (Replaces: 242216301) |
|
$ 12.89 | |||||
| 91A | 241824101 | Cap, Door Rack, White |
|
$ 17.44 | |||||
| NI | 241899703 | Screw, Truss Head, #10-32 X 1/4, Zinc |
|
$ 15.92 | |||||
| NI | 5303918697 | Alignment Kit, Freezer Door, W/instructions |
|
- | |||||
| NIA | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50, (2) (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| NIA | 241979601 | Bumper, Rubber, White, Upper Basket |
|
$ 22.68 | |||||
| NIA | 5304497384 | Plate, Tapping |
|
$ 15.60 | |||||
| NIA | 242011101 | Pin-lock |
|
$ 15.17 | |||||
| NIA | 242039701 | Screw, Basket Slides |
|
$ 13.46 |
