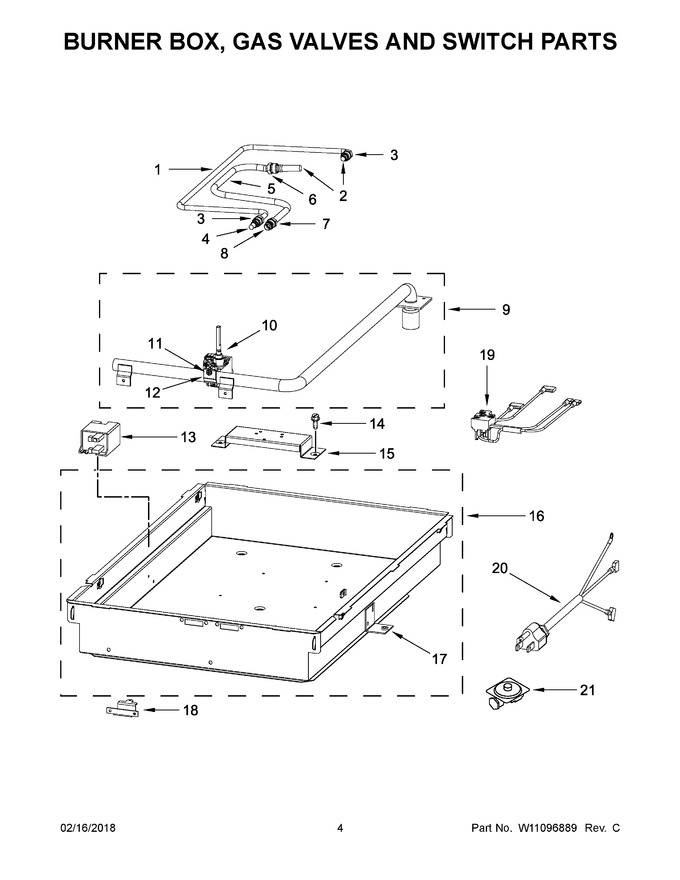

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11042565		Tubing, Wok (outer)		Appelez-nous	-
2	W10845603		Ferrule, Dual Injector		Appelez-nous	-
3	W10692377		Nut, Compression 1/4" Tubing		Appelez-nous	-
4	W10692371		Sleeve, Compression 1/4" Tubing		Appelez-nous	-
5	W11042563		Tubing, Wok (inner)		Appelez-nous	-
6	W10575398		Nut, Injector		Appelez-nous	-
7	W10692372		Nut, Compression		Appelez-nous	-
8	W10575399		Ferrule, Injector		Appelez-nous	-
9	W11043418		Assembly, Manifold		Appelez-nous	-
10	W11043537		Valve, Gas (dual)   (Replaces: W11043828)				$ 247.63
11	W10617476		Screw, Valves		Appelez-nous	-
12	W10617475		Bracket, Valve		Appelez-nous	-
13	W11601369		Spark Module   (Replaces: 8190929)			Immediately	$ 60.62
14	W10626012		Screw		Appelez-nous	-
15	W11042972		Bracket, Orifice Holder (dual Burner)		Appelez-nous	-
16	W11043428		Assembly, Burner Box		Appelez-nous	-
17	8190978		Bracket, Mounting				$ 81.04
18	W11042981		Bracket, Control Panel		Appelez-nous	-
19	W11043383		Harness, Switch And Light				$ 249.24
20	W10392007		Cord, Power   (Replaces: W10618502)				$ 96.25
21	WPW10569189		Regulator, Gas   (Replaces: W10569189)			Immediately	$ 226.67
NI	W11173757		Miscellaneous Parts, Kit, Module Mounting Bridge   (Replaces: W11031680)				$ 380.07

    View Diagram in Separate Window       Print Part List
